Transfer Case

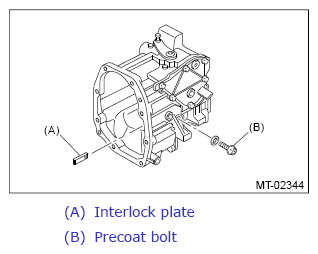

  1. Remove the interlock plate.
    CAUTION: Do not remove the precoat bolt (B) if the parts are assembled as a transmission assembly.
    G12394850Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the shift link assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Shift Link Assembly>REMOVAL .
