Transfer Case

  1. Install the shift link assembly to the transfer case. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Shift Link Assembly>INSTALLATION .
  2. Replace the precoat bolt and gasket with new parts, and Install the interlock plate.
    NOTE: Clean the bolt threads before installing the interlock plate.

    Tightening torque:

    20 N.m (2.0kgf-m, 14.8ft-lb)

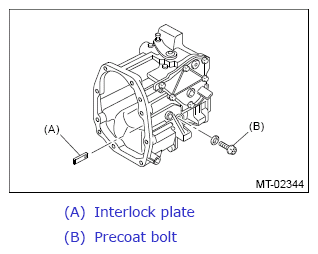

    G12394851Courtesy of SUBARU OF AMERICA, INC.
