Main Shaft Assembly: Adjustment
Selection of main shaft rear plate:

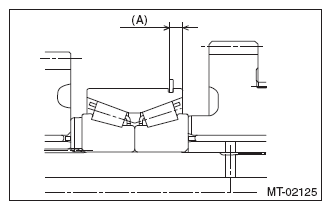

Measure the protrusion amount (A) of double taper roller bearing from transmission main case surface, and select a suitable plate in the following table.
NOTE:
Before measuring, tap the end of main shaft with a plastic hammer lightly in order to make the clearance zero between the main case surface and moving flange of bearing.
| Dimension (A) mm (in) |
Part No. | Mark |
|---|---|---|
| 4.00-4.13 (0.1575-0.1626) |
32294AA041 | 1 |
| 3.87-4.00 (0.1524-0.1575) |
32294AA051 | 2 |
