Front Differential Assembly: Removal

  1. Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Manual Transmission Assembly>REMOVAL .
  2. Remove the transfer case together with the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Transfer Case and Extension Case Assembly>REMOVAL .
  3. Remove the transmission case. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Transmission Case>REMOVAL .
  4. Remove the drive pinion shaft assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Drive Pinion Shaft Assembly>REMOVAL .
  5. Remove the main shaft assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Main Shaft Assembly>REMOVAL .
  6. Remove the front differential assembly.
    CAUTION:
    • Do not confuse the right and left taper roller bearing outer races.
    • Be careful not to damage the oil seal of differential side retainer.

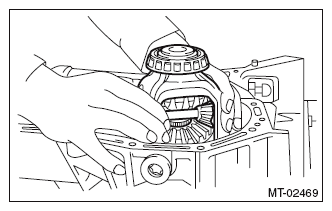

    G10323013Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the differential side retainers using the ST.

    Special tool:

    ST: 18630AA010 WRENCH COMPL RETAINER

    G09482650Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the taper roller bearing outer race from the transmission case using the PULLER ASSY (398527700).
