Differential Side Retainer

  1. Remove the O-rings.
    G08548756Courtesy of SUBARU OF AMERICA, INC.

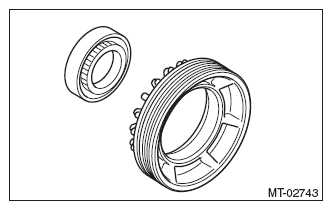

  2. Remove the oil seal.
    NOTE: Remove it using a flat tip screwdriver wrapped with cloth or tape, etc.
    G08548757Courtesy of SUBARU OF AMERICA, INC.
