Differential Case Assembly

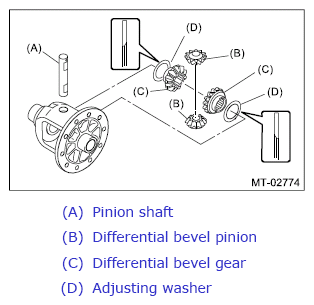

- Install the differential bevel gear and differential bevel pinion together with adjusting washer, and insert the pinion shaft.CAUTION: Face the chamfered side of adjusting washer toward bevel gear.
- Measure the backlash between the differential bevel gear and differential bevel pinion. Adjust the backlash if not within specified limit. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Front Differential Assembly>INSPECTION>DIFFERENTIAL BEVEL PINION GEAR BACKLASH .NOTE: Be sure the bevel pinion gear teeth contact adjacent gear teeth during measurement.
Specification:
0.13-0.18 mm (0.0051-0.0071in)
Special tool:
ST1: 498247001 MAGNET BASE
ST2: 498247100 DIAL GAUGE
- Align the pinion shaft pin hole with the differential case pin hole, and drive a new straight pin into the holes from the hypoid driven gear side using the ST.CAUTION: After driving, crimp the area around the hole, and make sure that the straight pin will not come out.
Special tool:
ST: 899904100 STRAIGHT PIN REMOVER
- Install the taper roller bearing.CAUTION:
- Do not apply a load in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
- Be careful when handling because the taper roller bearing and the outer race are used as a set.
Special tool:
ST1: 499277100 BUSHING 1-2 INSTALLER
ST2: 398497701 SEAT

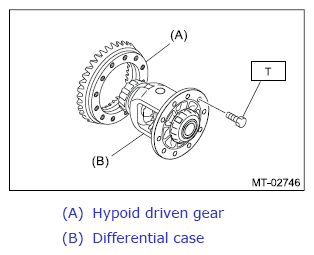

- Install the hypoid driven gear using twelve bolts.
Tightening torque:
T: 62 N.m (6.3kgf-m, 45.7ft-lb)
