Master Cylinder: Removal

CAUTION:
  • Be careful not to spill the brake fluid. Brake fluid spilled on the vehicle body will harm the paint surface; wash it off with water and wipe clean quickly if spilled.
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Drain the brake fluid. Ref. to CLUTCH SYSTEM>CLUTCH FLUID .
  4. Remove the instrument panel lower cover. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
  5. Remove the steering column. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Column>REMOVAL .
  6. Remove the clutch pedal assembly. Ref. to CLUTCH SYSTEM>Clutch Pedal>REMOVAL .
  7. Remove the clip and clevis pin, and then remove the push rod of the master cylinder.

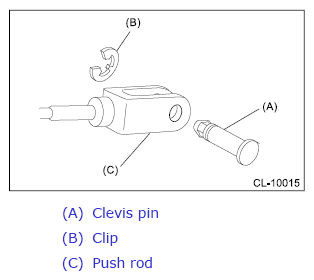

    G12395091Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the clutch pipe.
    G11256384Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the master cylinder.

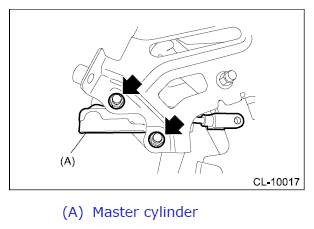

    G12395093Courtesy of SUBARU OF AMERICA, INC.
