Relay and Fuse: Location

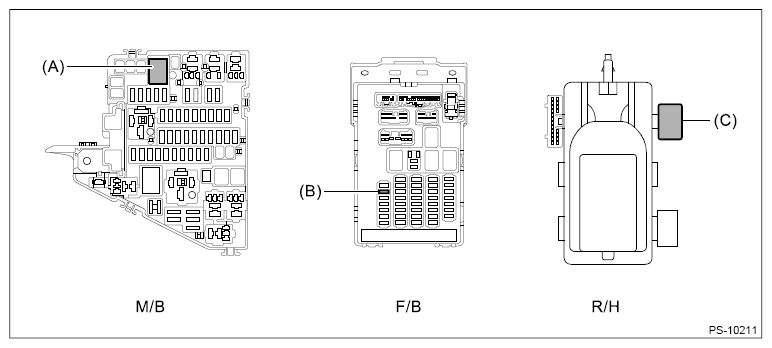

G12395169Courtesy of SUBARU OF AMERICA, INC.
Main fuse box (M/B) SBF fuse 80 A (power steering control module) (A)
Fuse & relay box (F/B) Fuse 7.5 A (power steering control module) (B)
Relay holder (R/H) Steering heater relay (C)
