High-Pressure Fuel Delivery Pipe Assembly

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11252777Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>REMOVAL .
  5. Remove the fuel pipe insulator No. 1, fuel pipe insulator No. 2 and fuel pipe insulator No. 3. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Insulator>REMOVAL .

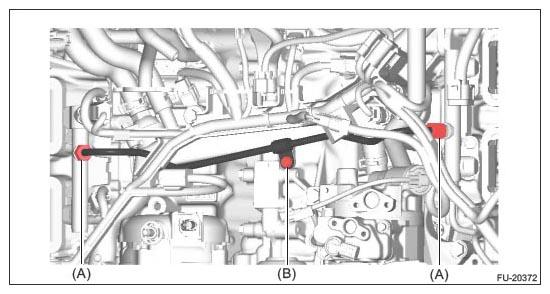

  6. Remove the flare nut (A) and bolt (B), and then remove the high-pressure fuel delivery pipe assembly.
    G11252865Courtesy of SUBARU OF AMERICA, INC.
