Vacuum Pump

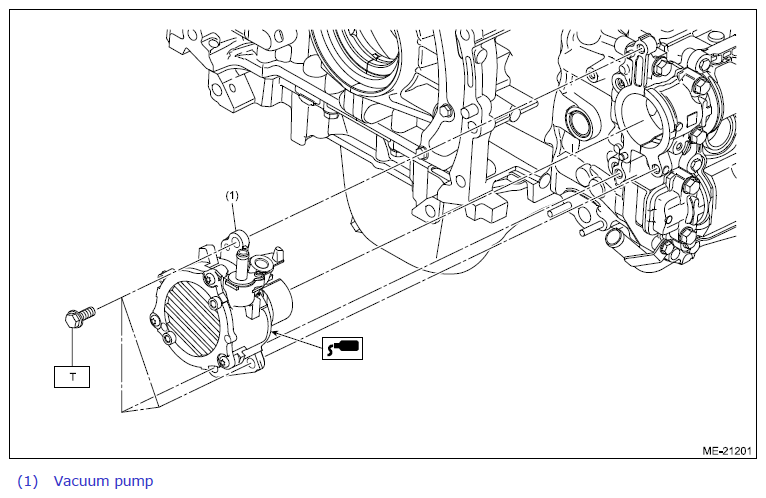

Fig 1: Locating Vacuum Pump Components

G12395333

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 16 (1.6, 11.8)
