Starting System & Charging System: Starter: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11252777Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the front wheel LH. Ref. to WHEEL AND TIRE SYSTEM>Tire and Wheel>REMOVAL .

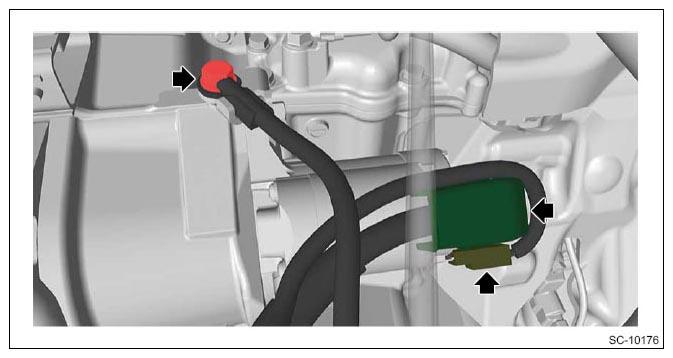

  5. Disconnect the connector, terminal B and ground terminal.
    CAUTION: In order to prevent damaging the ground terminal, fix the ground terminal when loosing the bolt, and avoid the part from rotating together while loosening the bolt.
    G11253702Courtesy of SUBARU OF AMERICA, INC.

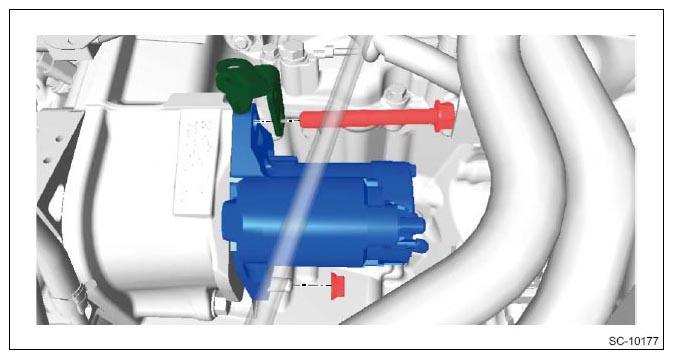

  6. Remove the cable stay and starter.
    NOTE: For the MT model, a bolt is used in the lower side of the starter.
    G11253703Courtesy of SUBARU OF AMERICA, INC.
