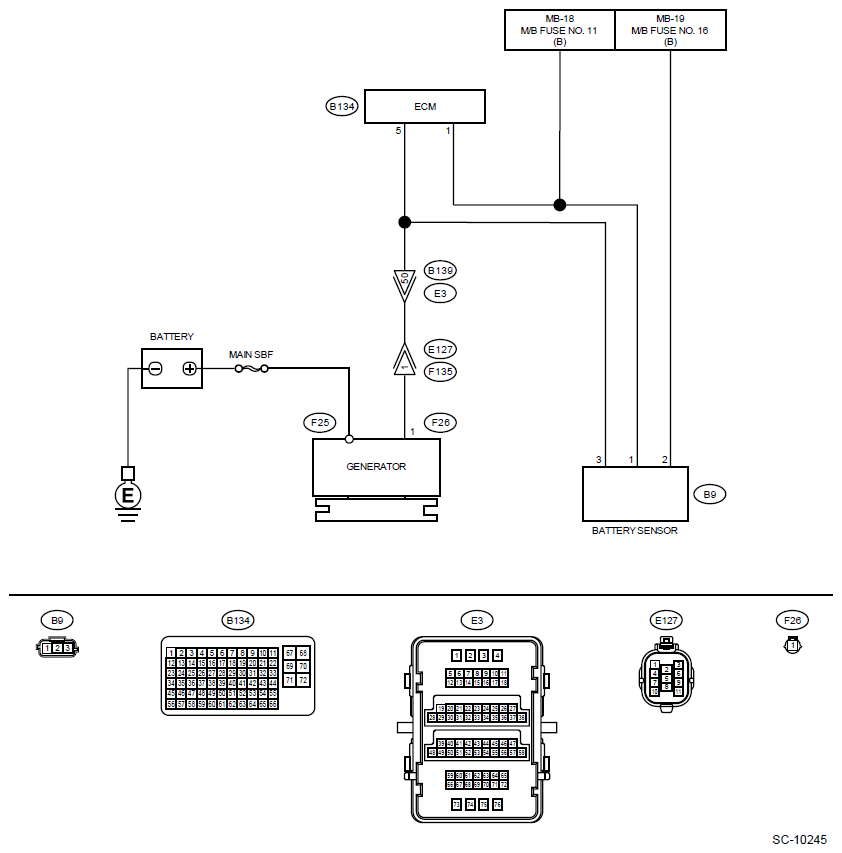

Starting System & Charging System: General Description: Wiring Diagram: Notes
Crosstrek model
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
