Check Motor Operation

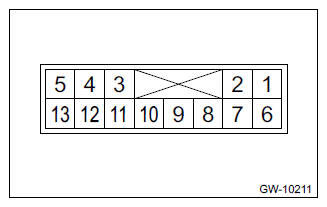

- Apply battery voltage between the outer mirror connector terminals and check the mirror operation.
Terminal No. Inspection conditions Switch position - - OFF 4 (+) - 3 (-) Apply battery voltage between terminals. UP 3 (+) - 4 (-) Apply battery voltage between terminals. DOWN 5 (+) - 4 (-) Apply battery voltage between terminals. LEFT 4 (+) - 5 (-) Apply battery voltage between terminals. RIGHT - If it does not operate normally, replace the outer mirror assembly.
