Components With Torque Specifications

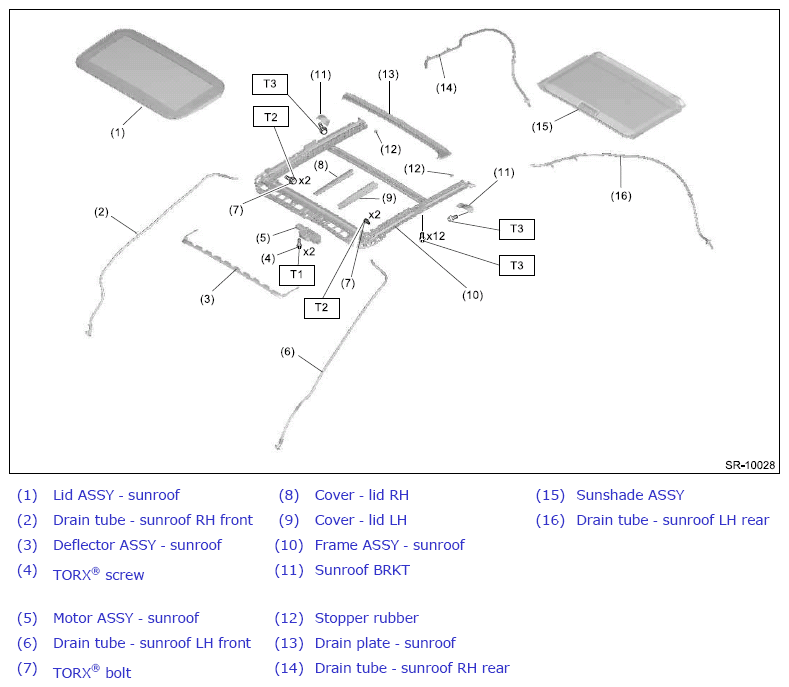

Fig 1: Sunroof Assembly Components
G12399098Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3 (0.3, 2.2)

T2: 4.5 (0.5, 3.3)

T3: 6 (0.6, 4.4)
