Home >> Subaru >> 2018 >> Crosstrek Base, Standard Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Anti-Theft System - Security And Locks >> Keyless Buzzer >> Removal

Keyless Buzzer: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.

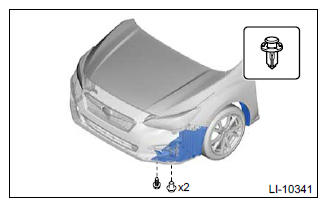

  3. Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  4. Remove the screw and clips, and turn over the mud guard - front.
    G11245950Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the keyless buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the keyless buzzer.
      G11246368Courtesy of SUBARU OF AMERICA, INC.
