Remote Opener

4 door model

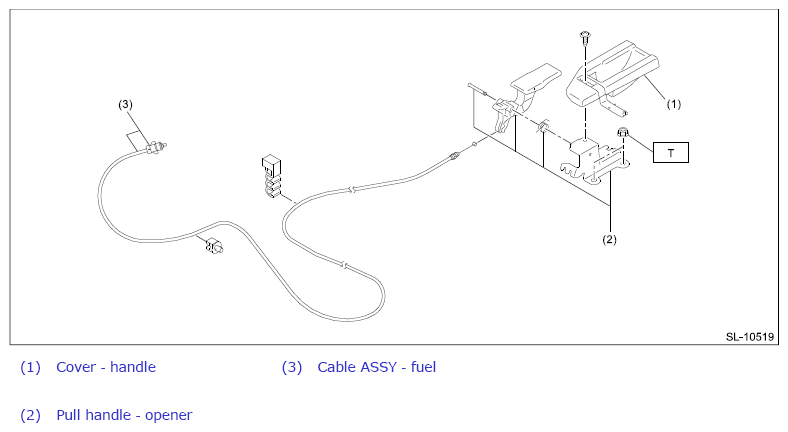

Fig 1: Locating Remote Opener Components - 4 Door Model
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
5 door model

Fig 2: Locating Remote Opener Components - 5 Door Model
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
