IMPREZA Model

  1. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>REMOVAL .
  2. Remove the cover UPR - front.
    1. Remove the clips, and remove the cover UPR - front.
      G11253597Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the lever assembly - safety.

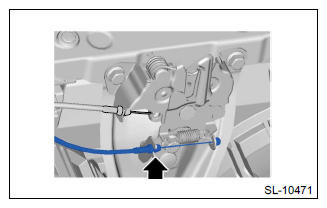

    1. Disconnect the cable - safety from the lock assembly - front hood.
      G11246323Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the clip of the cable - safety.
    3. Remove the bolts, and remove the lever assembly - safety.
      G11246324Courtesy of SUBARU OF AMERICA, INC.
