Front Speaker: Removal: Tweeter

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the trim panel - front pillar UPR. Ref. to EXTERIOR/INTERIOR TRIM>Upper Inner Trim>REMOVAL
  3. Remove the grille speaker side.
    1. Release the clips, hooks and claws, then detach the grille speaker side.
    G11245929Courtesy of SUBARU OF AMERICA, INC.
    NOTE: For the grille speaker side RH, disconnect the light control sensor connector.
  4. Remove the speaker assembly - tweeter.

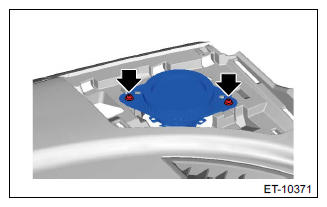

    1. Remove the screws.

      Preparation tool:

      Stubby screwdriver

      G11246748Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the speaker assembly - tweeter.
