External Connection Terminal: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the cover assembly - front and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  3. Remove the unit assembly - AUX.

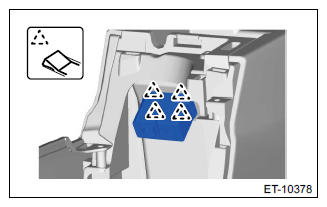

    1. While pressing the claw, press it in from the rear to remove the unit assembly - AUX.
      G11246766Courtesy of SUBARU OF AMERICA, INC.
