Entertainment System: Camera: Removal: Rear

4 DOOR MODEL

Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the trim panel - trunk lid. Ref. to EXTERIOR/INTERIOR TRIM>Trunk Room Trim>REMOVAL

Remove the rearview camera assembly.

CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.

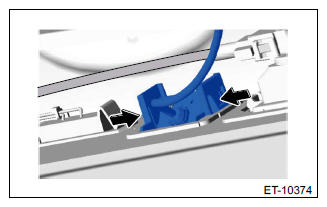

Disconnect the claws and then remove the rearview camera assembly.

Courtesy of SUBARU OF AMERICA, INC.

5 DOOR MODEL

Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the trim panel - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Trim>REMOVAL
Remove the garnish assembly - rear gate. Ref. to EXTERIOR/INTERIOR TRIM>Rear Gate Garnish>REMOVAL

Remove the rearview camera assembly.

CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.

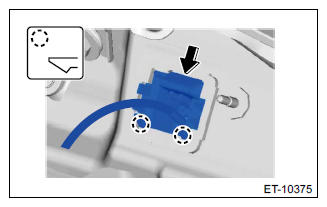

Release the claw and hook, and then remove the rearview camera assembly.

Courtesy of SUBARU OF AMERICA, INC.
