Check Connections With Line Diag Mode

  1. Turn the ignition switch to ACC.
  2. Press the button (b) twice with the button (a) pressed.
    G11246736Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Pressing the button (a) for 3 seconds or more, or turning the ignition switch from the OFF to ACC position can exit the diagnostic mode.
  3. {Line Diag} screen is displayed.
  4. Check the connection status with the {Connection} in the {Line Diag} screen.

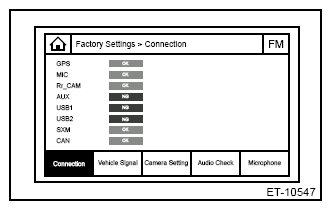

    G12399549Courtesy of SUBARU OF AMERICA, INC.
    Item Content Inspection
    GPS GPS antenna connection Check that the display shows OK. (Models with GPS antenna only)
    MIC MIC connection Check that the display shows OK.
    Rr_CAM Rr CAM Video signal Check that the display shows OK.
    AUX AUX connection Connect the pin jack for check into the AUX terminal, and check that the display shows OK.
    USB1 USB connection Connect the memory for check into the USB terminal, and check that the display shows OK.
    USB2
    SXM SXM connection Check that the display shows OK. (Models with SXM only)
    CAN CAN connection Check that the display shows OK.
