6MT Model

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>Front Exhaust Pipe>REMOVAL .
  4. Remove the center exhaust cover.

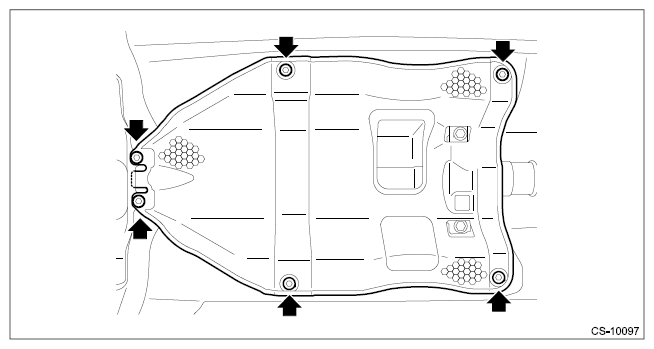

    G12392868Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the cable cover plate.

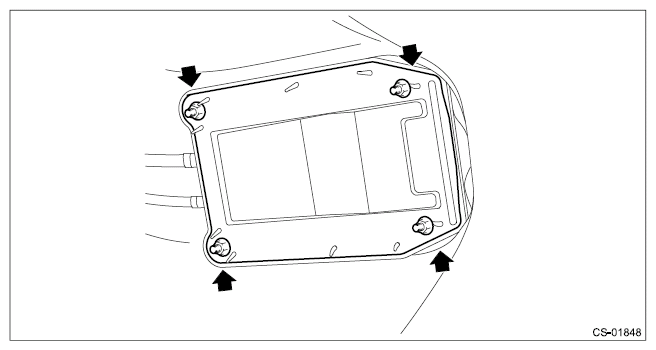

    G12392869Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the MT gear shift cable and MT gear select cable.
    CAUTION:
    • Be careful not to deform the cable inner.
    • Do not twist the cable inner excessively.
    • Do not apply excessive load while holding the part (a).
    G12392870Courtesy of SUBARU OF AMERICA, INC.
    1. Pull out down the MT gear shift cable to spread the spring.
    2. Push the MT gear select cable in the direction of arrow, and remove it.

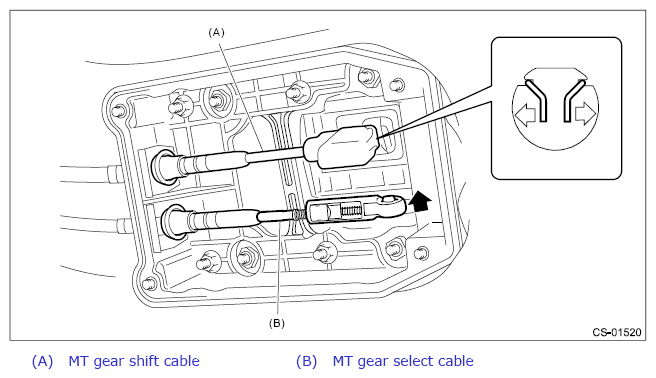

      G12392871Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the cable cover assembly.

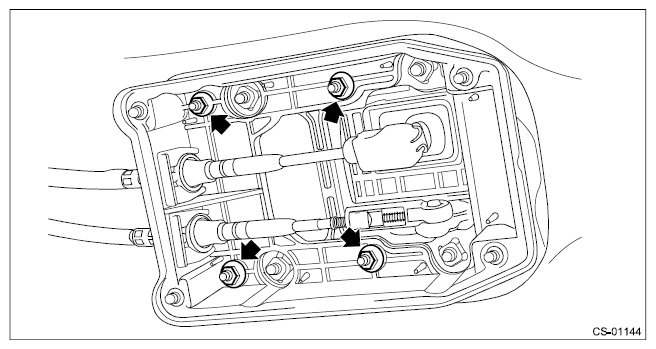

    G12392872Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Remove the gear shift knob and remove the front console panel. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  10. Remove the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  11. Remove the harness clamp.
  12. Remove the gear shift lever assembly.
    NOTE: The MT gear shift lever cannot be disassembled.

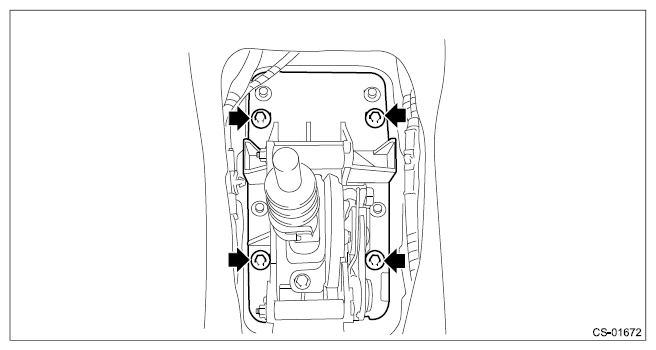

    G12392873Courtesy of SUBARU OF AMERICA, INC.
