Rear Suspension

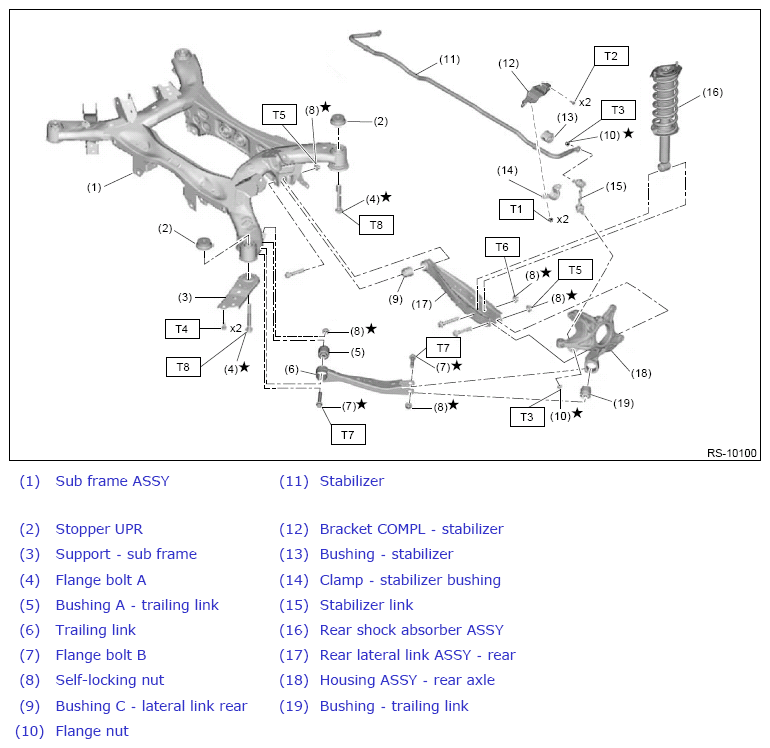

Fig 1: Exploded View Of Rear Suspension Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 35 (3.6, 25.8)

T3: 38 (3.9, 28)

T4: 70 (7.1, 51.6)

T5: 82.5 (8.5, 60.7)

T6: 85 (8.7, 62.7)

T7: 100 (10.2, 73.7)

T8: 145 (14.8, 106.9)

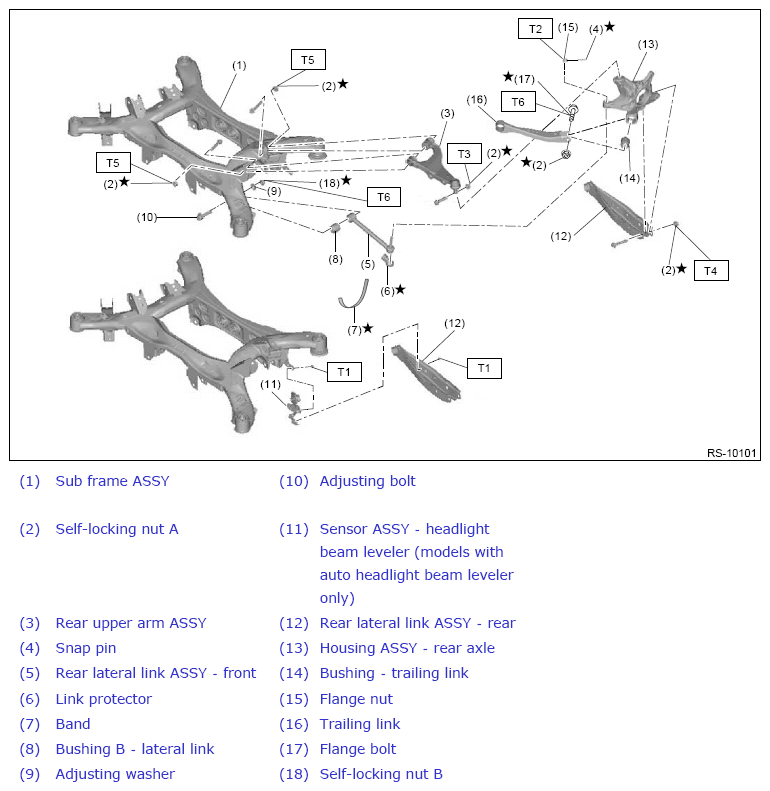

Fig 2: Exploded View Of Rear Suspension Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 60 (6.1, 44.3)

T3: 80 (8.2, 59)

T4: 82.5 (8.5, 60.7)

T5: 90 (9.2, 66.4)

T6: 100 (10.2, 73.7)
