Rear Seat

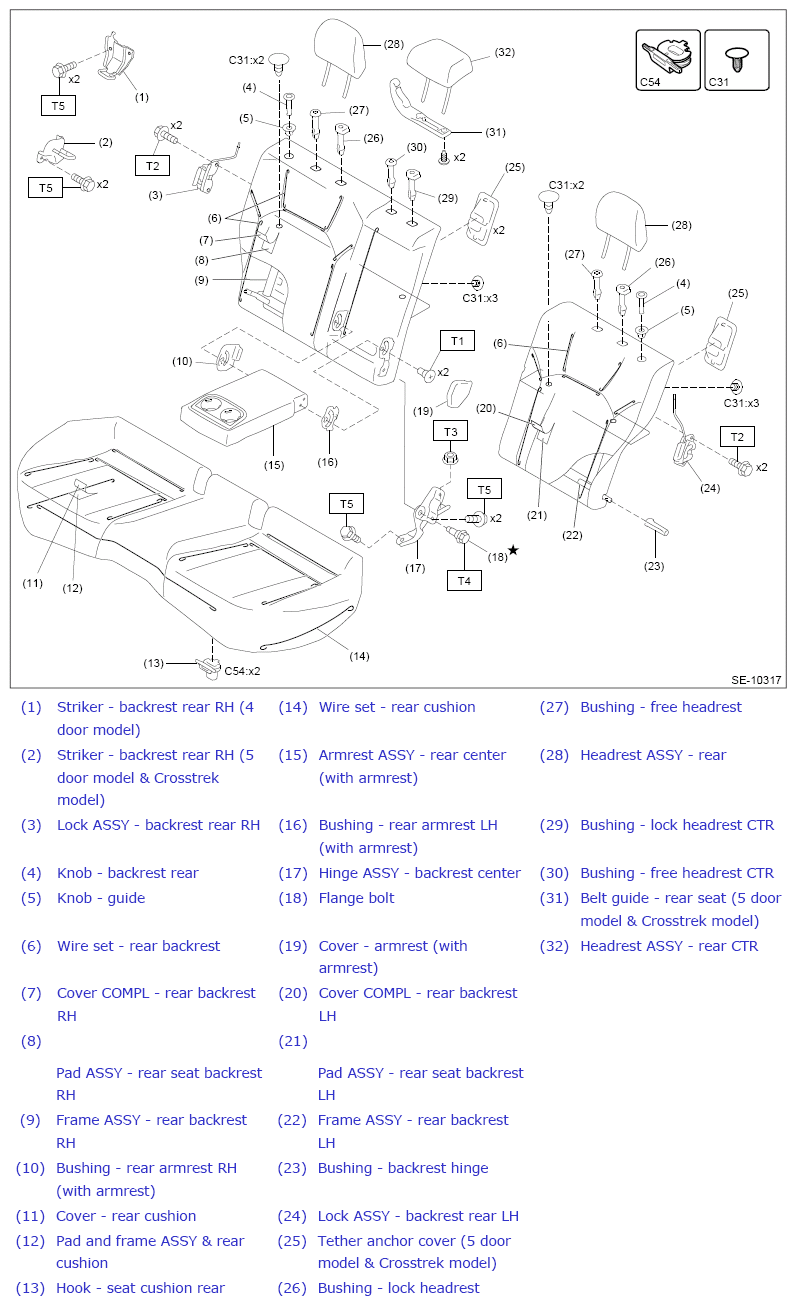

Fig 1: Exploded View Of Rear Seat Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 14.7 (1.5, 10.8)

T2: 22.7 (2.3, 16.7)

T3: 24.5 (2.5, 18.1)

T4: 29 (3, 21.4)

T5: 33 (3.4, 24.3)
