Power Amplifier: Removal

NOTE: Remove the power amplifier assembly after sliding the passenger s seat back and forth as necessary.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the power amplifier assembly.

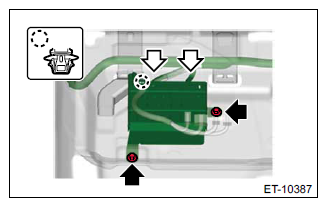

    1. Remove the harness clip, and disconnect each connector.
    2. Remove the nut and remove the power amplifier assembly.
    G11246751Courtesy of SUBARU OF AMERICA, INC.
