Front Suspension Lower Arm: Assembly

  1. Installation of front lower arm bushing No. 1 LH
    1. Using the SST, install the front lower arm bushing No. 1 LH in the front suspension lower arm ASSY LH so that the dimensions are within the range shown in the figure.

      SST 20299AG000, 20299AG010

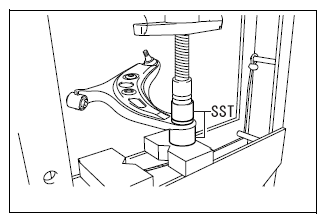

    G12588544Courtesy of SUBARU OF AMERICA, INC.
    G12588545Courtesy of SUBARU OF AMERICA, INC.
  2. Installation of front lower arm bushing No. 2 LH
    1. Using the SST, install the front lower arm bushing No. 2 LH in the front suspension lower arm ASSY LH.

      SST 927680000

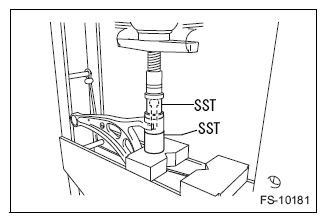

    G12588546Courtesy of SUBARU OF AMERICA, INC.
