Circuit Figure
Circuit Figure

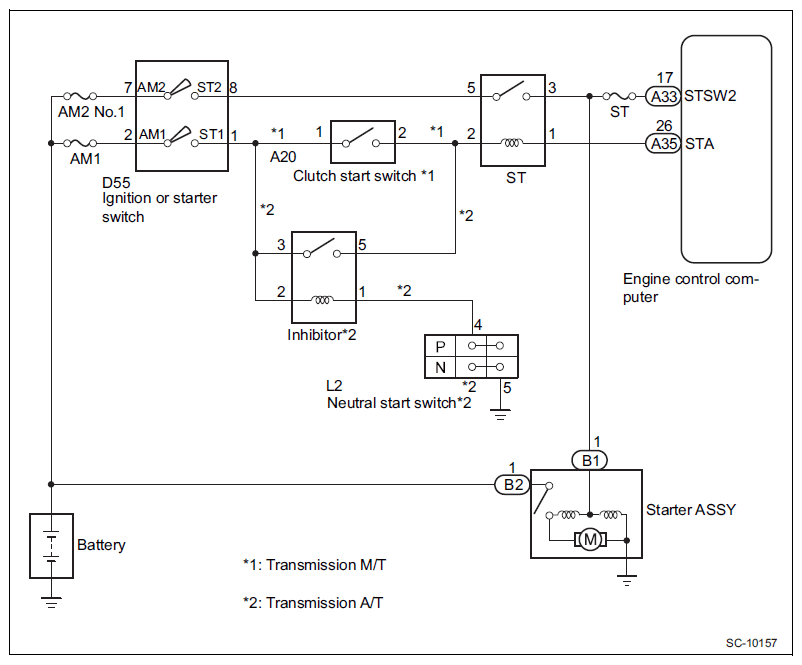

Without smart entry & start system
Courtesy of SUBARU OF AMERICA, INC.
With smart entry & start system
(Refer to
CIRCUIT FIGURE
)
