Front Suspension Member: Installation
- Installation of front crossmember SUB-ASSY

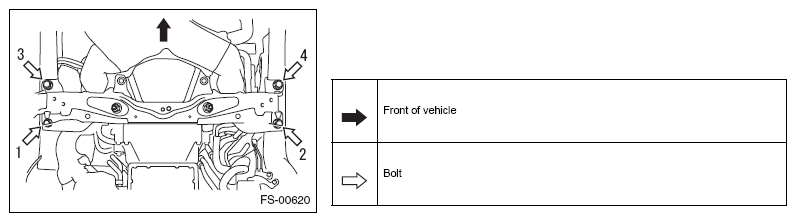

- Install four new bolts in the order shown in the figure to temporarily install the front crossmember SUB-ASSY.
- Temporarily attach two new nuts to the front crossmember SUBASSY.
- Fully tighten the four bolts.
Standard value: T=95N.m {969kgf.cm} {70.1 ft.lbf}
- Fully tighten the two nuts.
Standard value: T=60N.m {612kgf.cm} {44.3ft.lbf}
- Install four new bolts in the order shown in the figure to temporarily install the front crossmember SUB-ASSY.
- Adjustment of shift lever position (automatic transmission)CAUTION: If the mounting bolts of the front crossmember SUB-ASSY have become even slightly loose, check the adjustment of the shift lever.
(Refer to ADJUSTMENT )
- Installation of steering gear ASSY (Refer to INSTALLATION )
- Installation of sub frame COMPL LH (Refer to INSTALLATION )
- Installation of sub frame COMPL RHNOTE: Service the RH side in the same procedure as the LH side.
- Installation of flexible draw stiffener ASSY (tS model) (Refer to INSTALLATION )
- Installation of front stabilizer link ASSY LH (Refer to INSTALLATION )
- Installation of front stabilizer link ASSY RHNOTE: Service the RH side in the same procedure as the LH side.
- Installation of front suspension lower arm ASSY LH (Refer to INSTALLATION )
- Installation of front suspension lower arm ASSY RHNOTE: Service the RH side in the same procedure as the LH side.
- Installation of undercover front side rear LH
- Install the undercover front side rear LH with the three clips.
- Installation of undercover front side rear RHNOTE: Service the RH side in the same procedure as the LH side.
- Installation of under cover rear LH (Refer to INSTALLATION Step 72)
- Installation of under cover COMPL T/M (Refer to INSTALLATION )
- Installation of undercover front AL (Refer to INSTALLATION )
- Removal of engine hanger (Refer to INSTALLATION )
- Inspection and adjustment of front wheel alignment (Refer to FRONT WHEEL ALIGNMENT )
- Initialization of head light leveling computer (refer to AUTO LEVELING SYSTEM )
- Headlight beam adjustment (Refer to ADJUSTMENT )
- VDC sensor mid point setting (Refer to WORK SUPPORT )
