Front Strut Tower Bar: Removal

  1. Removal of front strut tower bar RH

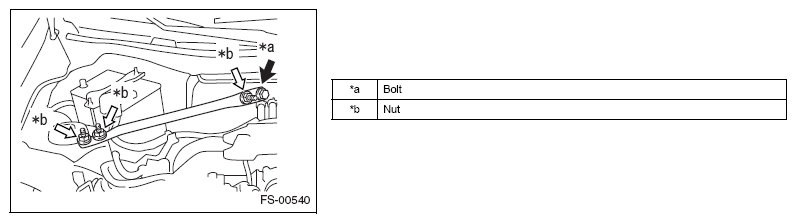

    1. Remove the bolt and three nuts, and remove the front strut tower bar RH.
    G12588515Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of flexible V-shaped bar RH (tS model)

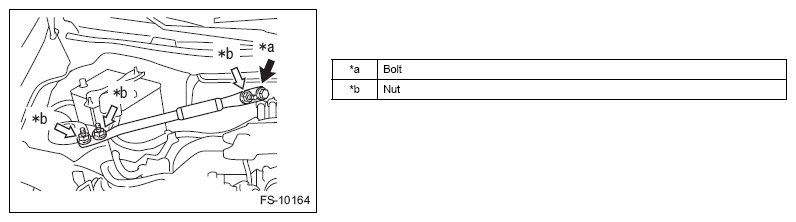

    1. Remove the bolt and 3 nuts, and then remove the flexible Vshaped bar RH.
    G12588516Courtesy of SUBARU OF AMERICA, INC.
  3. Removal of front strut tower bar LH
    NOTE: Service the LH side in the same procedure as the RH side.
  4. Removal of flexible V-shaped bar LH (tS model)
    NOTE: Service the LH side in the same procedure as the RH side.
