Exploded View

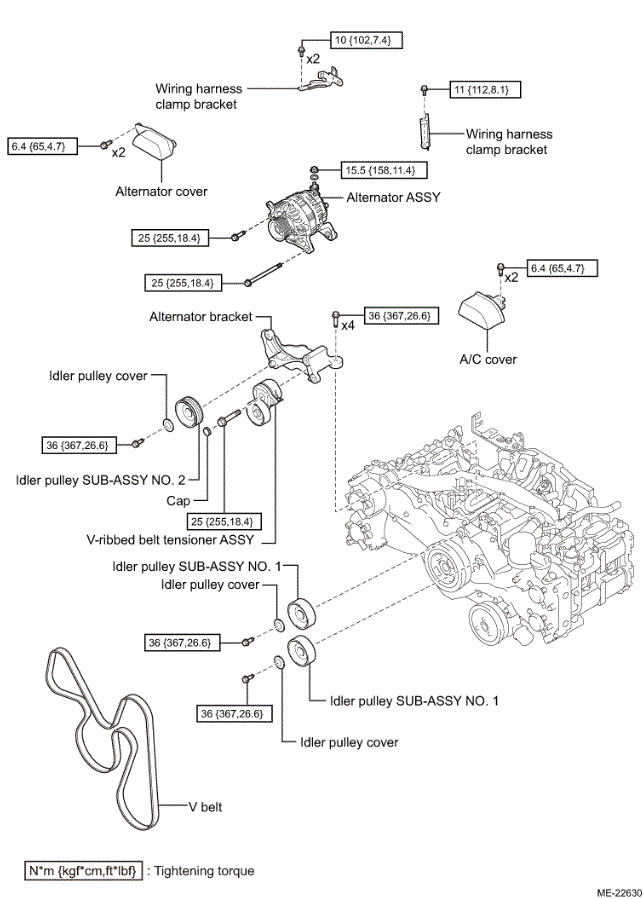

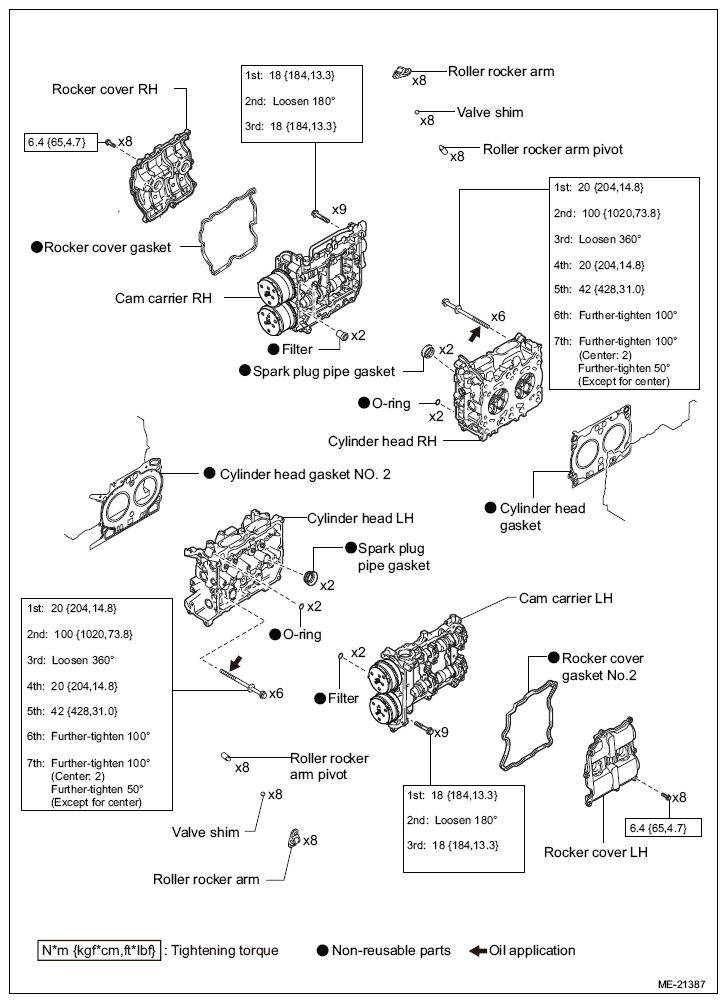

Fig 1: Partial Engine Assembly (FA20) Components With Torque Specification (1 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

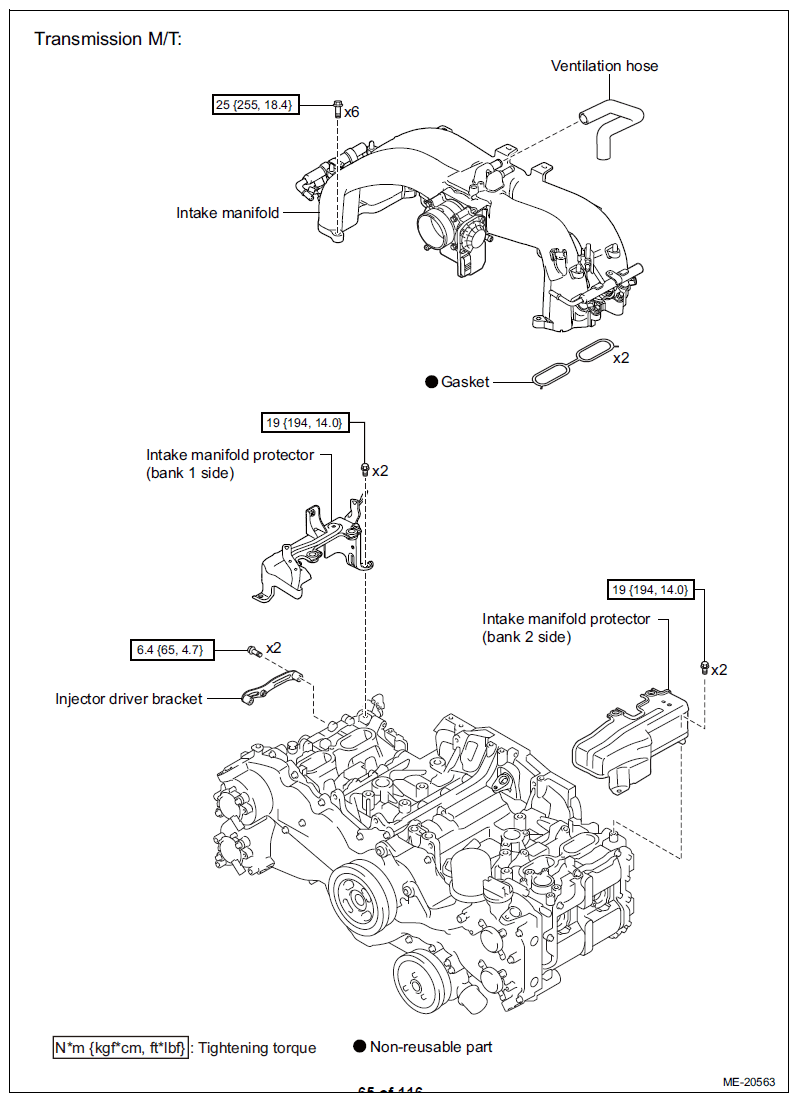

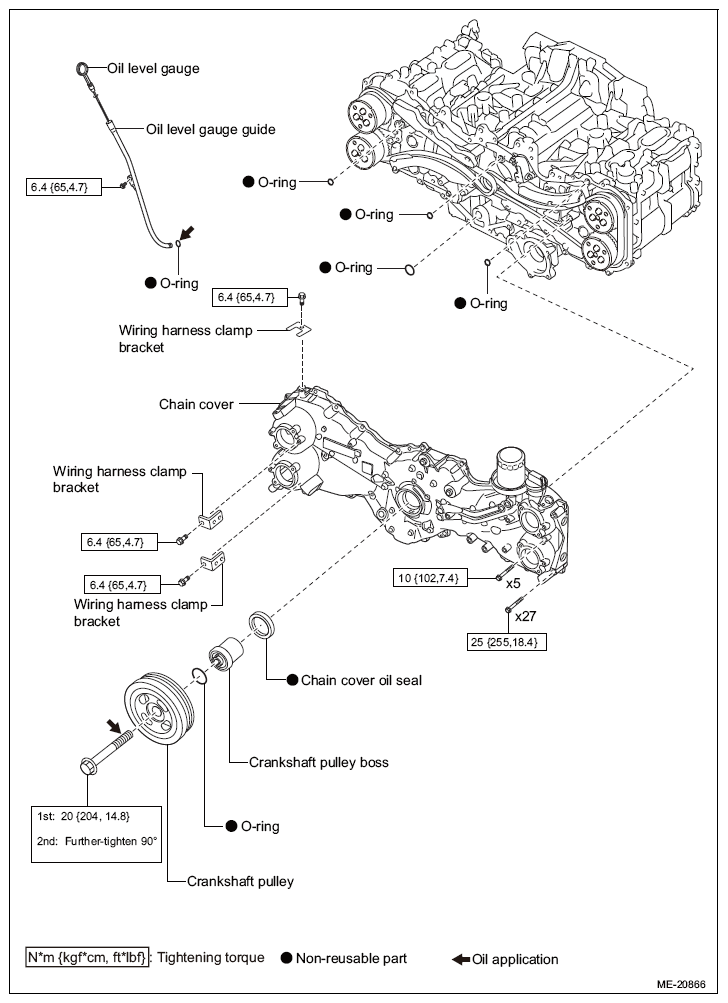

Fig 2: Partial Engine Assembly (FA20) Components With Torque Specification (2 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

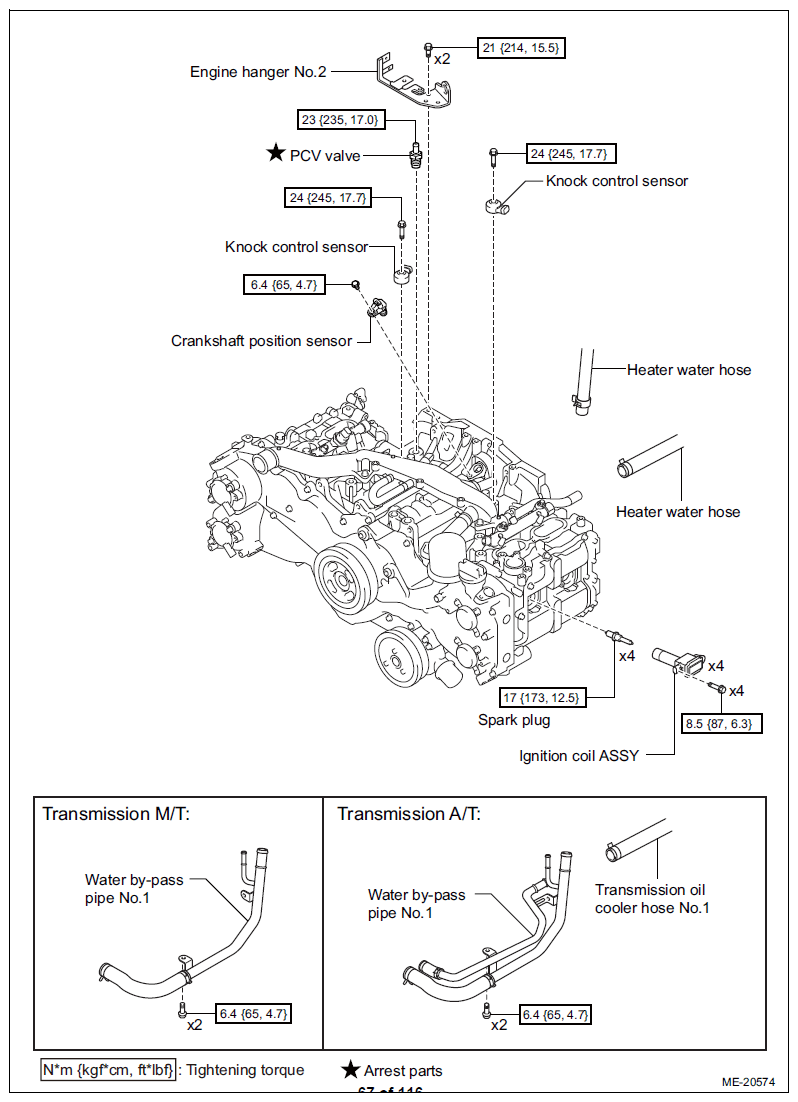

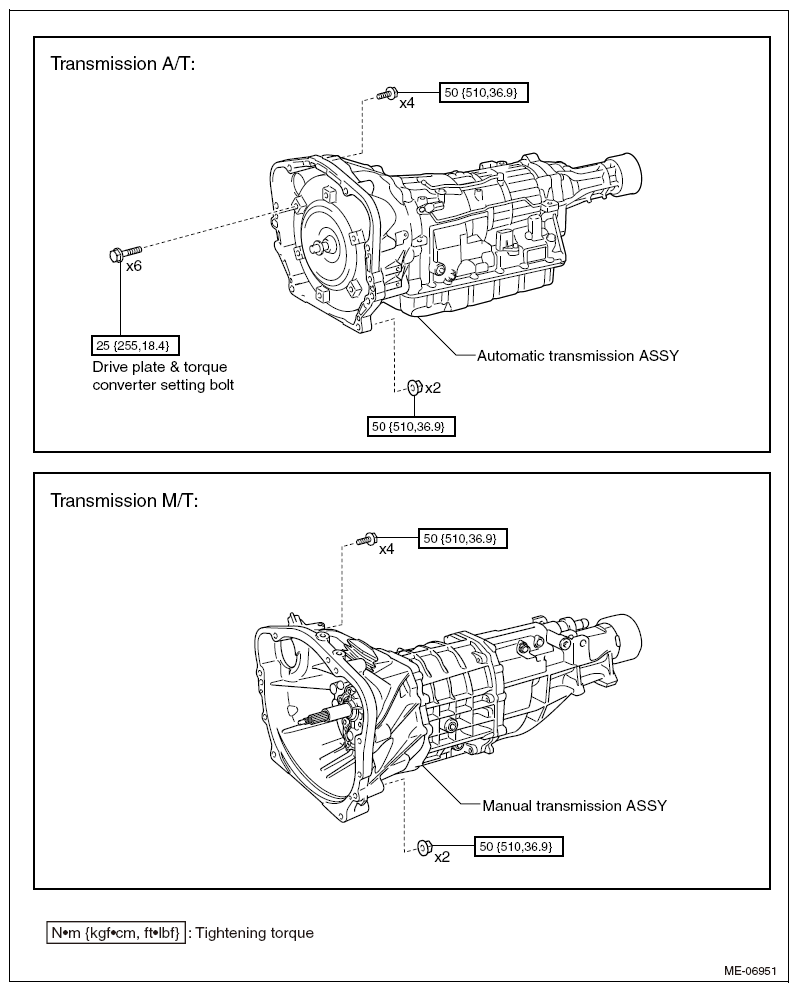

Fig 3: Partial Engine Assembly (FA20) Components With Torque Specification (3 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

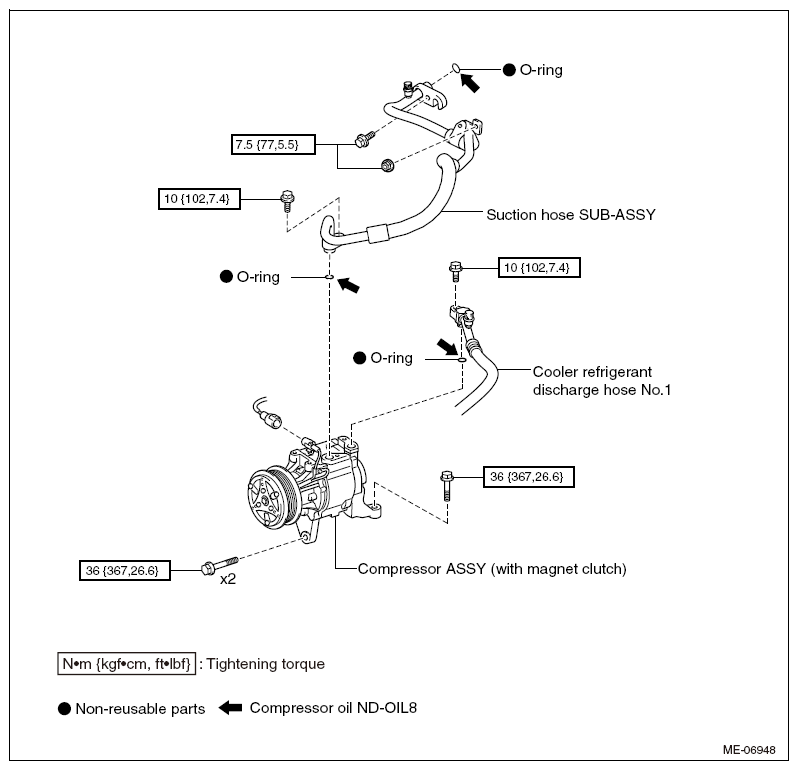

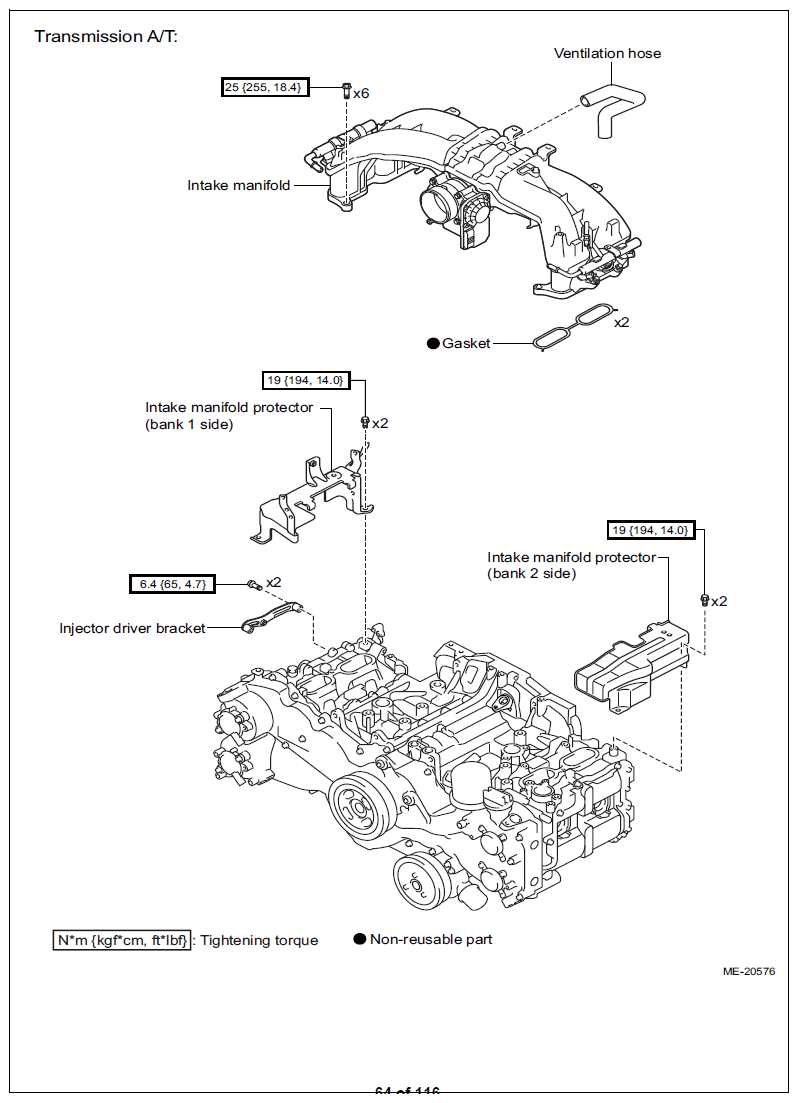

Fig 4: Partial Engine Assembly (FA20) Components With Torque Specification (4 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

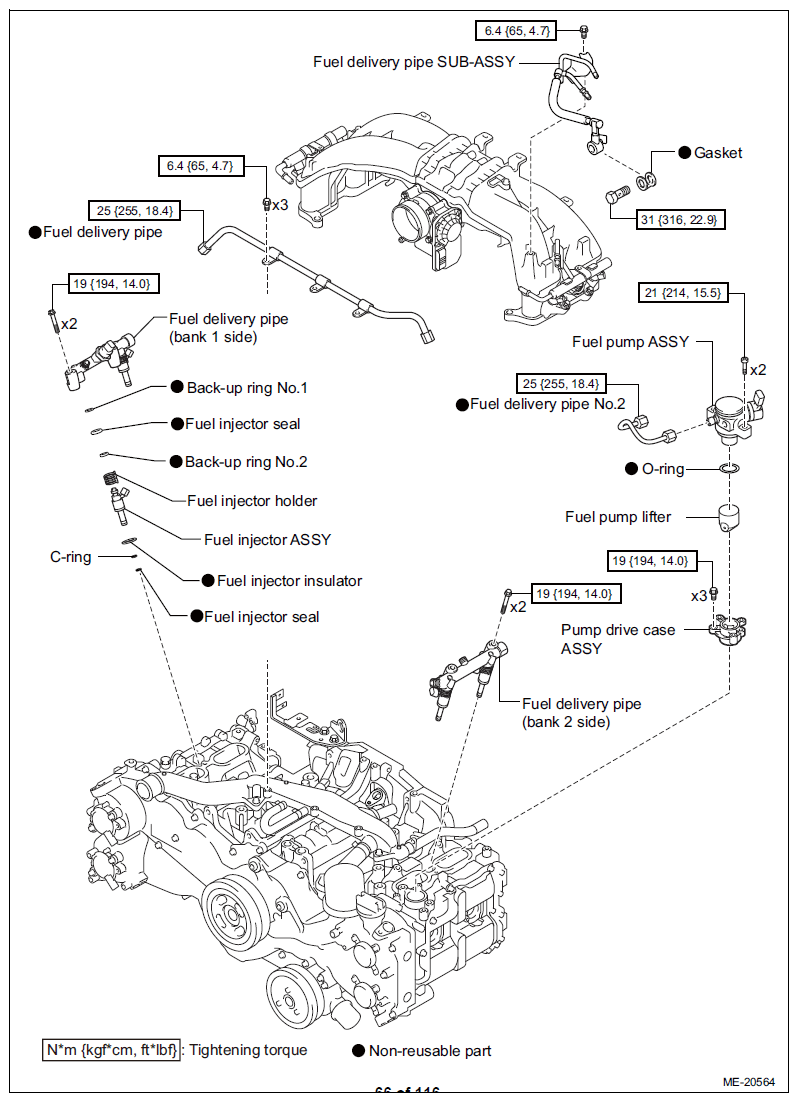

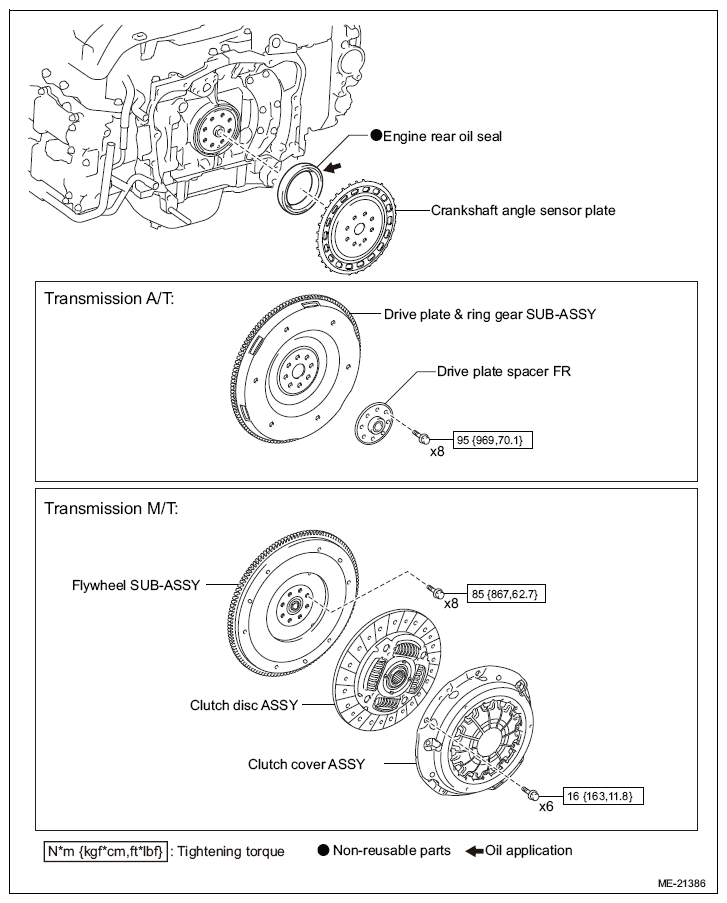

Fig 5: Partial Engine Assembly (FA20) Components With Torque Specification (5 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

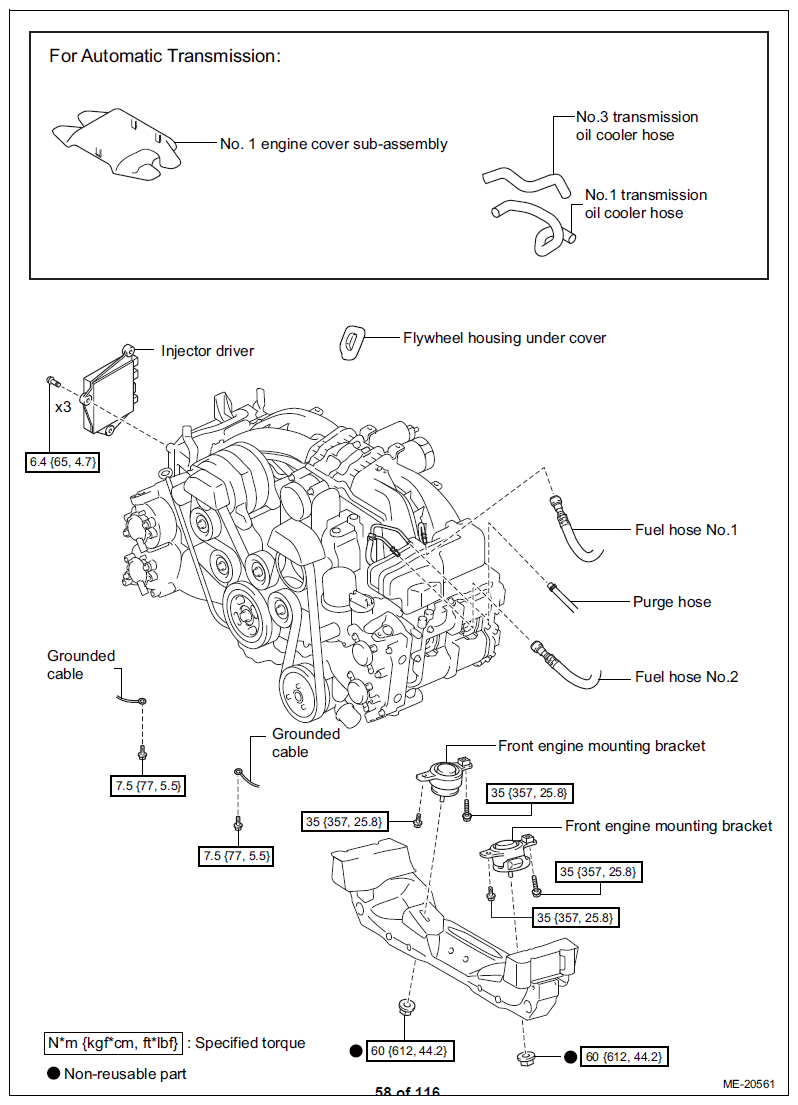

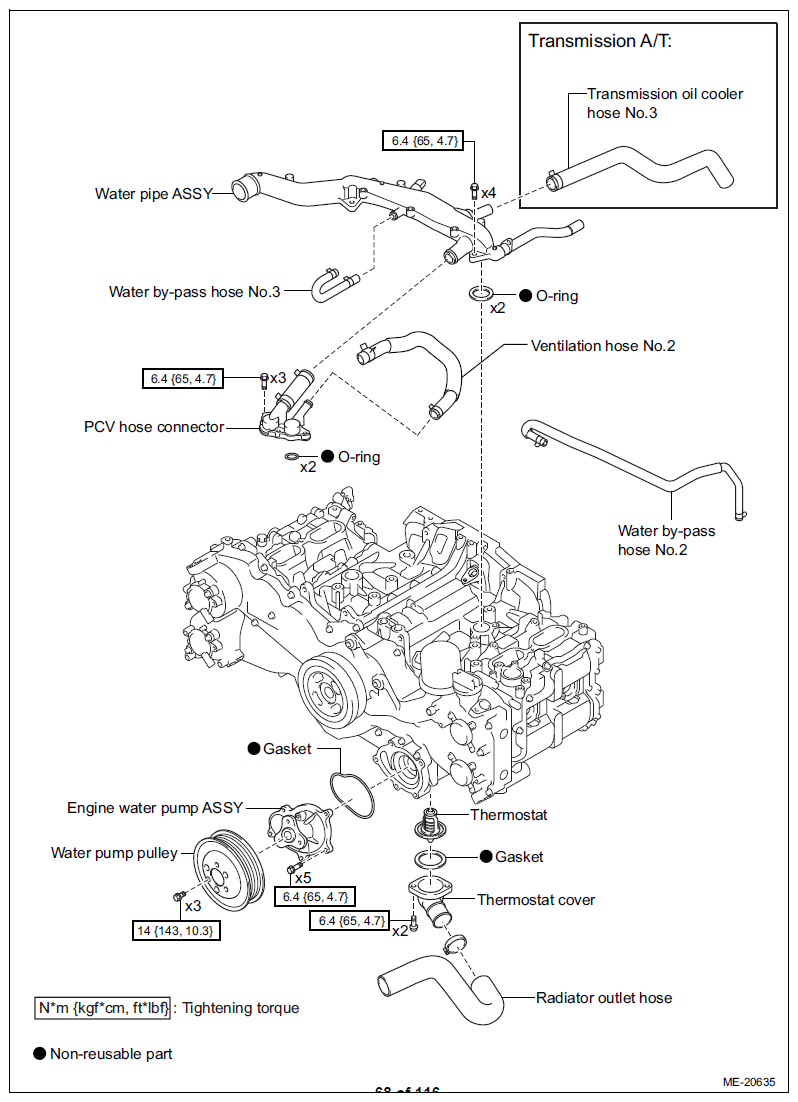

Fig 6: Partial Engine Assembly (FA20) Components With Torque Specification (6 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

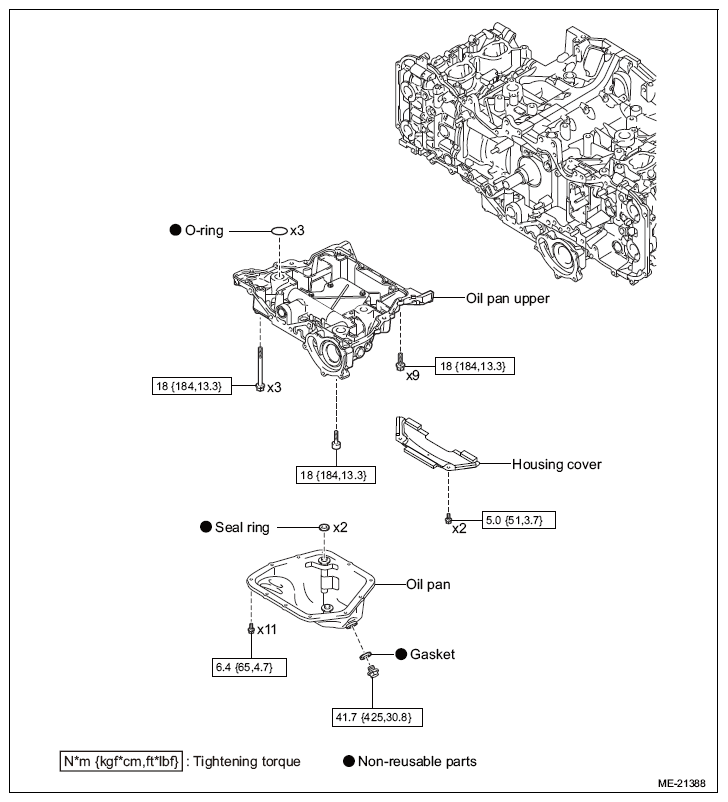

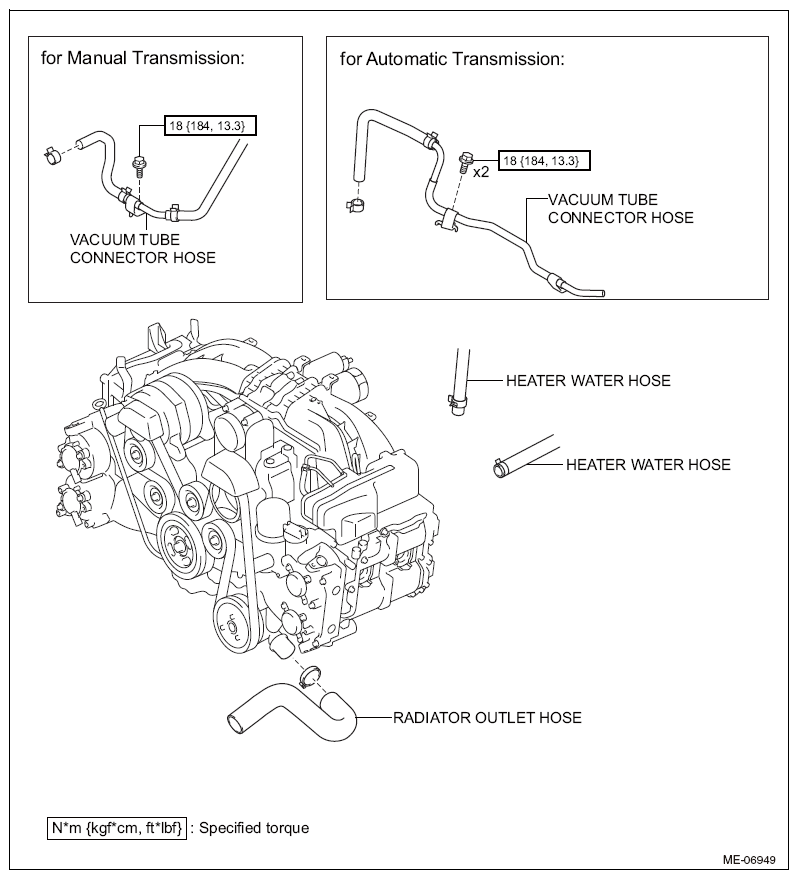

Fig 7: Partial Engine Assembly (FA20) Components With Torque Specification (7 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

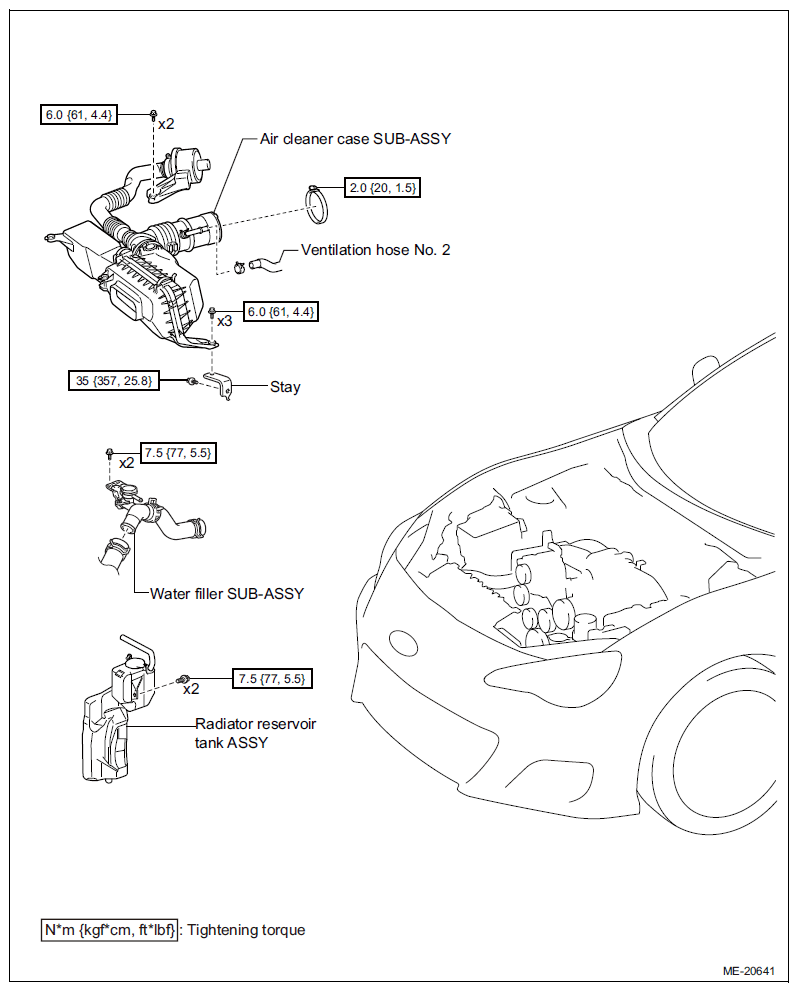

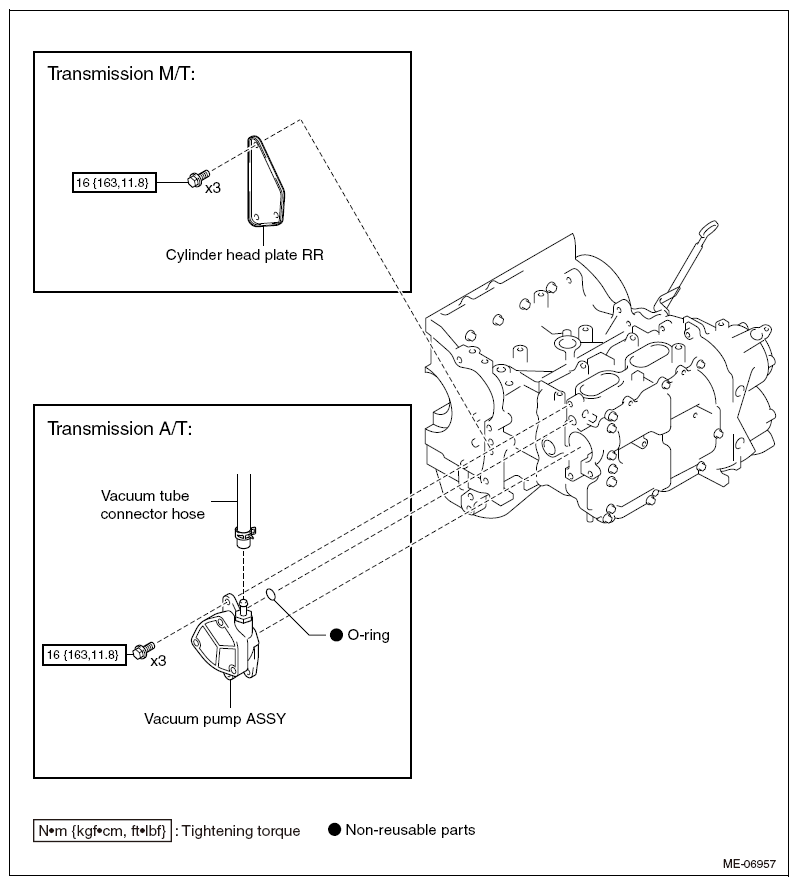

Fig 8: Partial Engine Assembly (FA20) Components With Torque Specification (8 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Partial Engine Assembly (FA20) Components With Torque Specification (9 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Partial Engine Assembly (FA20) Components With Torque Specification (10 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Partial Engine Assembly (FA20) Components With Torque Specification (11 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Partial Engine Assembly (FA20) Components With Torque Specification (12 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Partial Engine Assembly (FA20) Components With Torque Specification (13 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Partial Engine Assembly (FA20) Components With Torque Specification (14 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

Fig 15: Partial Engine Assembly (FA20) Components With Torque Specification (15 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

Fig 16: Partial Engine Assembly (FA20) Components With Torque Specification (16 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

Fig 17: Partial Engine Assembly (FA20) Components With Torque Specification (17 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

Fig 18: Partial Engine Assembly (FA20) Components With Torque Specification (18 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

Fig 19: Partial Engine Assembly (FA20) Components With Torque Specification (19 Of 19)

Courtesy of SUBARU OF AMERICA, INC.
