Components With Torque Specifications

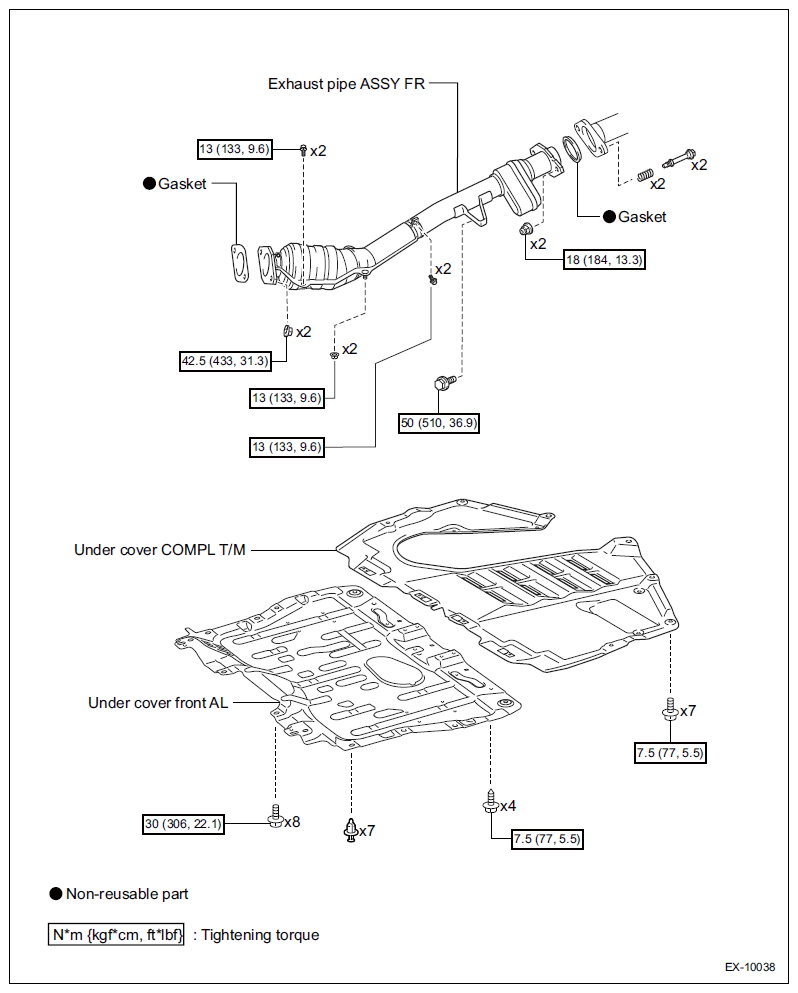

Fig 1: Locating Exhaust Manifold (FA20) Components (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

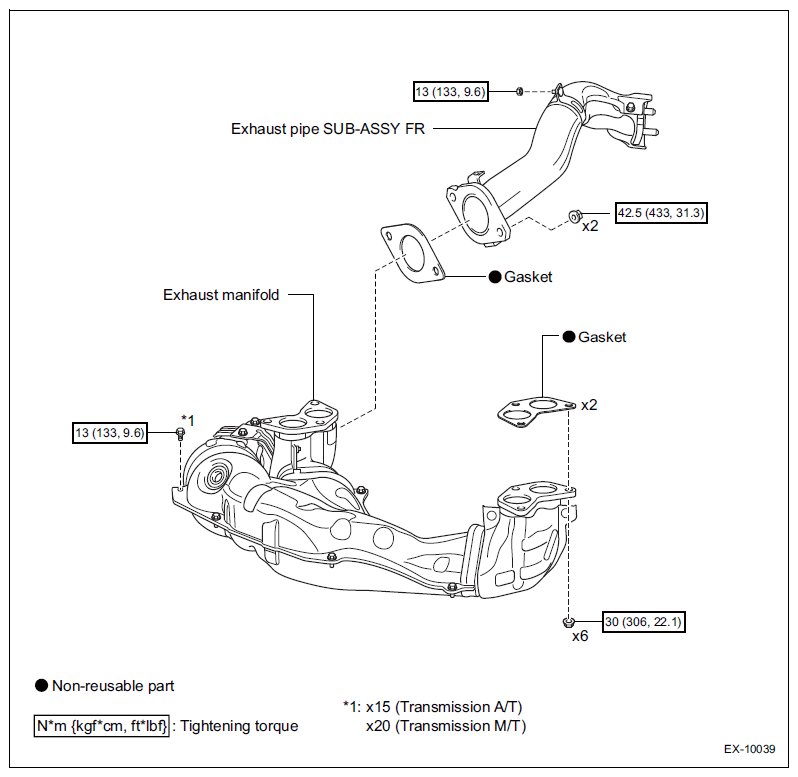

Fig 2: Locating Exhaust Manifold (FA20) Components (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
