Alternator (FA20): Disassembly

  1. Removal of IC regulator
    1. Remove the cover.
      G11261086Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the nut and remove the terminal B.
      G11261087Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the rear cover.
      G11261088Courtesy of SUBARU OF AMERICA, INC.
      G12594692Courtesy of SUBARU OF AMERICA, INC.

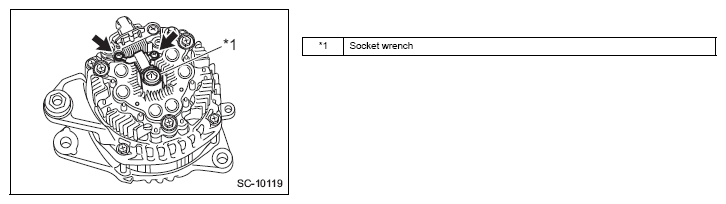

    4. Remove the 2 bolts, and remove the brush ASSY.
      NOTE: To avid the damage to the slip ring, place an appropriate tool such as a socket wrench of the correct size between the brush and slip ring.
      G11261090Courtesy of SUBARU OF AMERICA, INC.
    5. Remove the 3 bolts, and remove the IC regulator.
