Unit Inspection

  1. Inspection of the trunk opening switch ASSY
    1. Inspection of the trunk opening switch ASSY

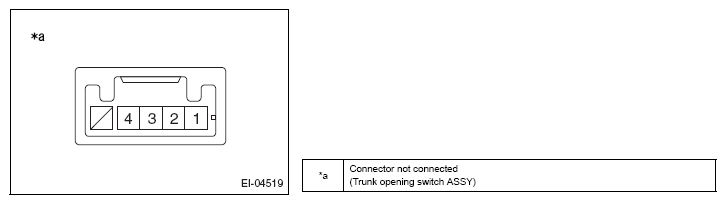

      1. Check the resistance between the connector terminals.

        Resistance

      Inspection terminals Inspection conditions Standard value
      4 - 1 When the switch is not in use (OFF) 10 kΩ or more
      4 - 1 When the switch is in use (ON) Less than 1 Ω
      G12595118Courtesy of SUBARU OF AMERICA, INC.
