Unit Inspection

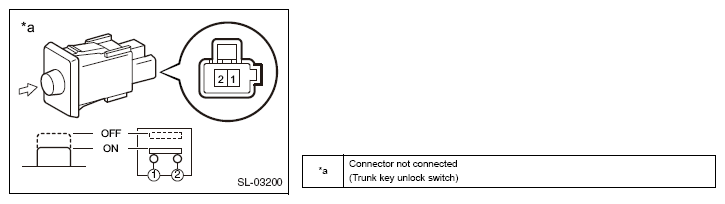

  1. Inspection of the trunk key unlock switch
    1. Measure the resistance between the terminals.
      STANDARD VALUE SPECIFICATION - RESISTANCE

      Inspection terminals Inspection conditions Standard value
      1 - 2 When the switch is in use (ON) Less than 1 Ω
      1 - 2 When the switch is not in use (OFF) 10 kΩ or more
      G12595126Courtesy of SUBARU OF AMERICA, INC.
