Components With Torque Specification

G11261349

Courtesy of SUBARU OF AMERICA, INC.

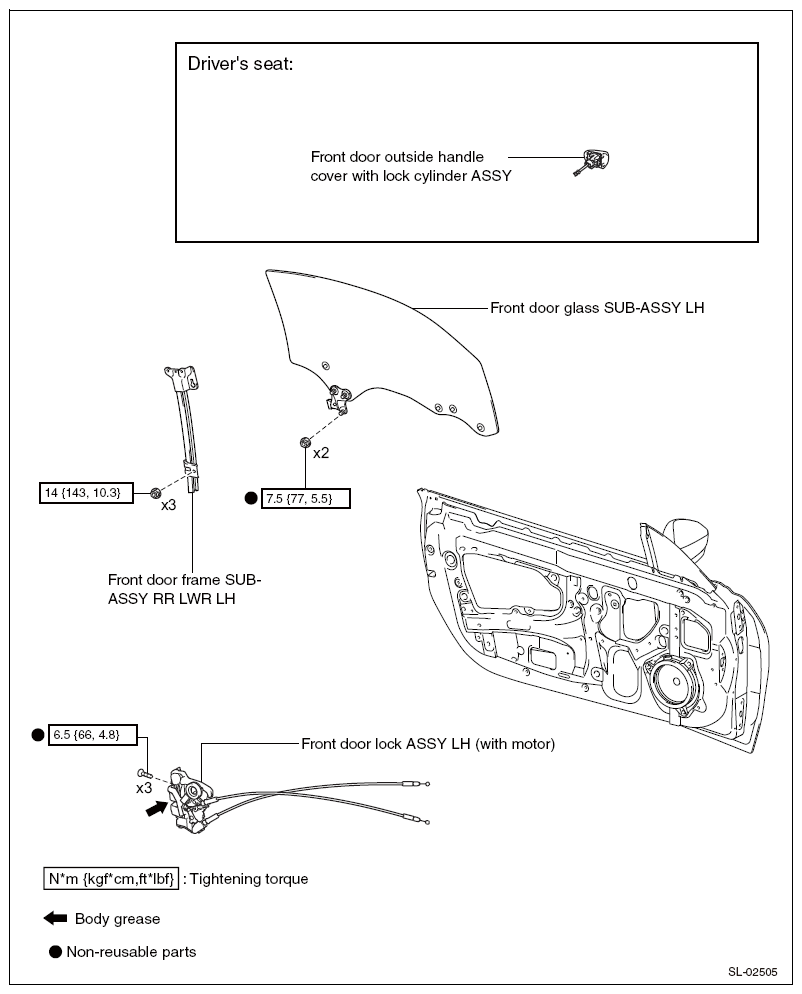

Fig 1: Locating Front Door Lock Assembly Components

G08557481

Courtesy of SUBARU OF AMERICA, INC.
