Door Control Transmitter (Without Smart Entry): Removal

  1. Removal of transmitter housing cover

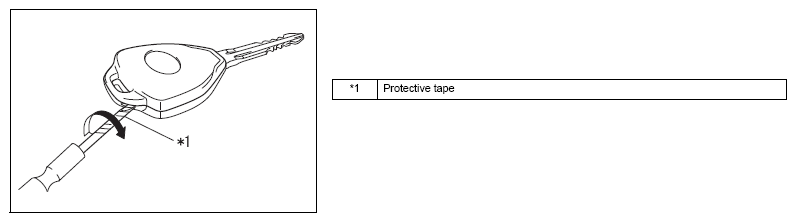

    1. Using a flat tip screwdriver wrapped with protective tape, remove the transmitter housing cover.
      G12589214Courtesy of SUBARU OF AMERICA, INC.
      CAUTION: Do not pry the cover excessively.

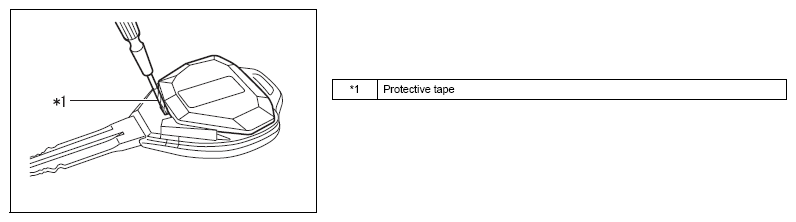

    G12589215Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of door control transmitter module set
    1. Remove the door control transmitter module set from the transmitter housing case.
  3. Removal of door control transmitter gasket
    1. Remove the door control transmitter gasket
  4. Removal of transmitter battery (Refer to TRANSMITTER BATTERY (WITHOUT SMART ENTRY) )
