Rear View Camera Assy: Removal

  1. Removal of the trunk cover (Refer to DISASSEMBLY )
  2. Removal of key lock trunk (Refer to REMOVAL )
  3. Removal of the trunk garnish SUB-ASSY outside (Refer to REMOVAL )
    G11261067Courtesy of SUBARU OF AMERICA, INC.

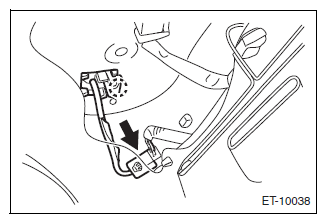

  4. Removal of the rear view camera ASSY
    1. Disconnect the rear view camera ASSY connector.
    2. Disengage the tab and remove the rear view camera ASSY.
