Radio Receiver Assy: Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of the instrument panel ornament (Refer to REMOVAL , Step 4)
  3. Removal of the instrument cluster finish panel SUB-ASSY CTR (Refer to REMOVAL , Step 5)
  4. Removal of the radio receiver ASSY
    1. Undo the 4 bolts and pull out the radio receiver ASSY toward the rear of the vehicle.
    2. Disconnect each connector and remove the radio receiver ASSY.

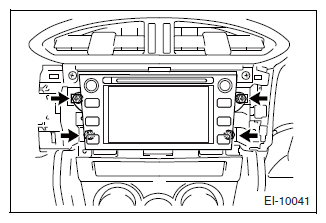

    G11261025Courtesy of SUBARU OF AMERICA, INC.
  5. Removal of the radio receiver bracket No. 1
    1. Undo the 4 screws and remove the radio receiver bracket No. 1 from the radio ASSY.

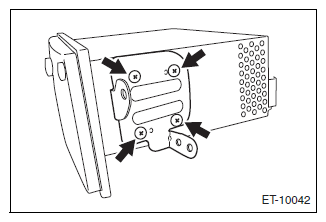

    G11261026Courtesy of SUBARU OF AMERICA, INC.
  6. Removal of the radio receiver bracket No. 2
    NOTE: Perform the same procedure as with the radio receiver bracket No. 1.
