Entertainment Systems: Amplifier: Removal

  1. Remove the trunk floor mat.
    1. Remove the trunk floor mat.
  2. Removal of package tray trim spacer No. 2 (Refer to REMOVAL )
  3. Remove the amplifier ASSY (with attached bracket).

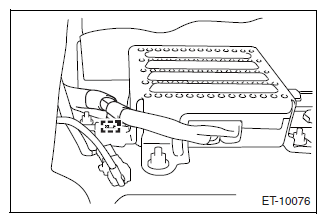

    1. Disconnect the clamps and wiring harness from the stereo component amplifier bracket.
      G11261040Courtesy of SUBARU OF AMERICA, INC.

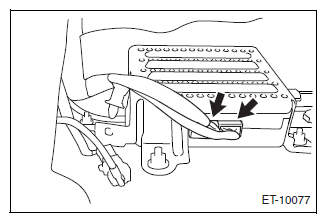

    2. Disconnect the two connectors from the stereo component amplifier.
      G11261041Courtesy of SUBARU OF AMERICA, INC.

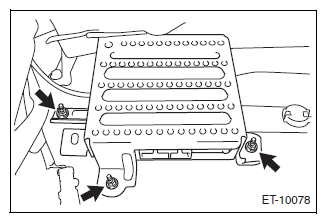

    3. Undo the three nuts and take off the stereo component amplifier ASSY (with attached bracket).
      G11261042Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the amplifier bracket.

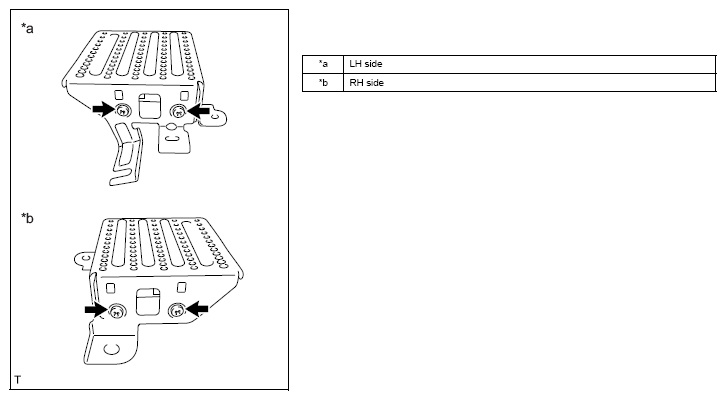

    1. Undo the four screws and remove the amplifier bracket.
    G12594642Courtesy of SUBARU OF AMERICA, INC.
