Except For STI Model
NOTE:
Apply the specified grease to lubricate to the following points before installation.
- Contact surface of lever and pivot
- Contact surface of lever and bearing
- Transmission main shaft spline
- Contact surface of release bearing and transmission case
Grease:
NICHIMOLY N-130 or equivalent
- Install the release bearing by inserting the release lever into the clutch housing release lever hole. Then, fit the lever spring onto the raised portion of the pivot by pushing the release lever to the pivot and twisting it to both sides.

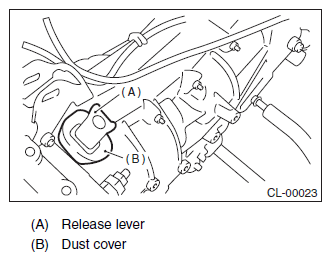

- Install the dust cover.
- Operate the release lever and check if the release bearing moves smoothly.
- Apply grease to the contact surface of the release lever and operating cylinder.
Grease:
NICHIMOLY N-130 or equivalent
- Install the transmission assembly. <Ref. to INSTALLATION , Manual Transmission Assembly.>
