CVT Model

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

For parts which are not reusable, always use new parts.
Always tighten the bushing in the state where the vehicle is at curb weight and the wheels are in full contact with the ground.
Make sure there is no clearance between rear axle housing and collar.
If the collar comes off from the rear axle housing, replace the rear axle housing with a new part.

Before installation, inspect the following items and replace any faulty part with a new one.
- Check the rear lateral link assembly front for damage and deformation.
- Check the bushing for abnormal cracks, damage or fatigue.
- Check the boot on the ball joint for abnormal cracks, damage or fatigue.

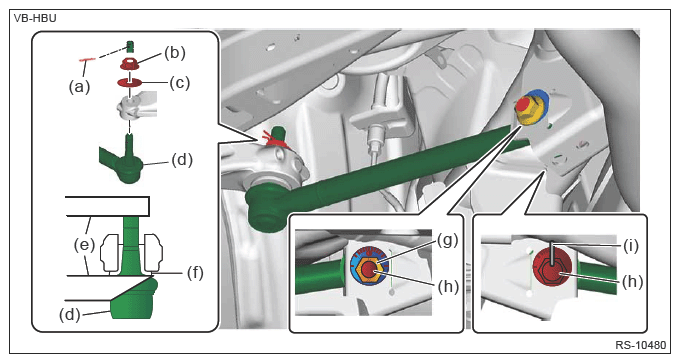

Install the rear lateral link assembly front.
CAUTION:
- Do not apply grease, etc. to the tapered portion of ball stud.
- When installing the adjusting bolt (h), make sure to fix the bolt side in place and tighten the nut side (g).
- Align alignment marks (i) on the adjusting bolt for the rear lateral link assembly front and on the sub frame.
- Be careful not to damage the boot of the ball joint.
- Do not forget to install the washer.
Tightening torque:

Refer to "COMPONENT" of "General Description" for the tightening torque. Ref. to REAR SUSPENSION>GENERAL DESCRIPTION>COMPONENT>REAR SUSPENSION .

Courtesy of SUBARU OF AMERICA, INC.
Install the trailing link assembly rear. Ref. to REAR SUSPENSION>TRAILING LINK>INSTALLATION .
Install the rear wheels. Ref. to WHEEL AND TIRE SYSTEM >TIRE AND WHEEL>INSTALLATION .
Inspect the wheel alignment and adjust if necessary.
- Inspection: Ref. to FRONT SUSPENSION>WHEEL ALIGNMENT>INSPECTION .
- Adjustment: Ref. to FRONT SUSPENSION>WHEEL ALIGNMENT>ADJUSTMENT .
Perform "VDC sensor midpoint setting mode". Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC Control Module and Hydraulic Control Unit (VDC Control Module & H/U & H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
Perform the lane keep assist learning value clear. Ref. to EYESIGHT (DIAGNOSTICS)>WORK SUPPORT .
