Model Without Washer Nozzle

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Since the arm assembly windshield wiper on the left and right sides can interfere with each other, install the passenger's side first.

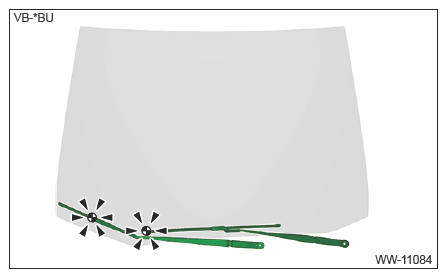

Align the blade assembly windshield wiper with the wiper set mark of the windshield glass to install the arm assembly windshield wiper.
Tightening torque:

22 N.m (2.2 kgf-m, 16.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the cover windshield wiper arm.
Operate the windshield wiper once to check that the stop position is aligned with the wiper set mark.
