Register Transmitter (ID): Operation

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Perform the registration procedure of the transmitter in the following cases:

NOTE:
  • If registration of the transmitter ID is not possible after two attempts, replace the TPMS & keyless entry control module or TPMS Control Module. Ref. to  WHEEL AND TIRE SYSTEM>TIRE PRESSURE MONITORING SYSTEM
  • During the registration, turn the ignition switch to OFF and end the Subaru Select Monitor. Or if the registration is not performed for 5 minutes or more, the registration mode is canceled.
  • When rotating tires, there is no affect on the performance or functions of the tire pressure monitoring control module even if the transmitter (ID) is not registered, however, the tire position displayed on the Subaru Select Monitor will be incorrect.
  1. Adjust all tire pressures to the specifications.
  2. Connect the Subaru Select Monitor and select [Diagnosis] on [Start] display.
  3. On [Vehicle selection] screen, input the target vehicle information and select [OK].
  4. On [Main Menu] screen, select [Each System].
  5. On [Select System] screen, select [Tire Pressure Monitor], and then select [Enter].
  6. On [Select Function] screen, select [Work Support].
  7. On [Work Support] screen, select [ID registration].
  8. When [ID registration mode When execute Registered ID is deleted Continue?] is displayed, select [OK].

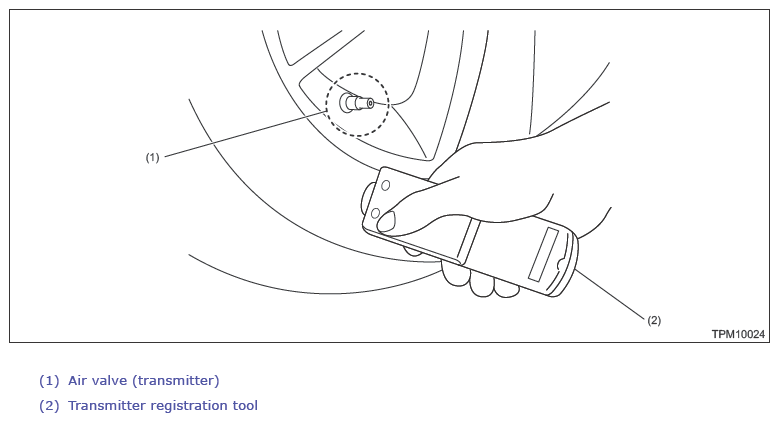

  9. Contact the transmitter registration tool to the side wall area near the air valve on the front left tire, and press the switch. The transmitter ID is sent to the TPMS & keyless entry control module or TPMS Control Module. (At this time, the tire pressure warning light blinks to confirm that the registration has started.)
    G14614825Courtesy of SUBARU OF AMERICA, INC.
    NOTE:
    • The registration order of transmitter ID is not specified.
    • The transmitter registration tool is used by touching the side wall area near the transmitter.
    • When registration of each tire is completed, [ID registration completed] is displayed on the Select Monitor screen.
    • If registration procedure stop in the halfway (turning ignition switch to OFF, wrong registration order, etc), proceed from step   5 .
  10. When ID registration is completed, the tire pressure warning light remains lit for approximately 2 seconds, to end the registration. Switch the screen to [Data Monitor] of Subaru Select Monitor. Ref. to TIRE PRESSURE MONITOR (DIAGNOSTICS)>DATA MONITOR
  11. Check the transmitter ID that was registered, then perform a driving test. Ref. to TIRE PRESSURE MONITOR (DIAGNOSTICS)>INSPECTION MODE
