Seat Belt System
>>
General Description
>>
Components With Torque Specifications
>>
Rear Seat Belt
Rear Seat Belt

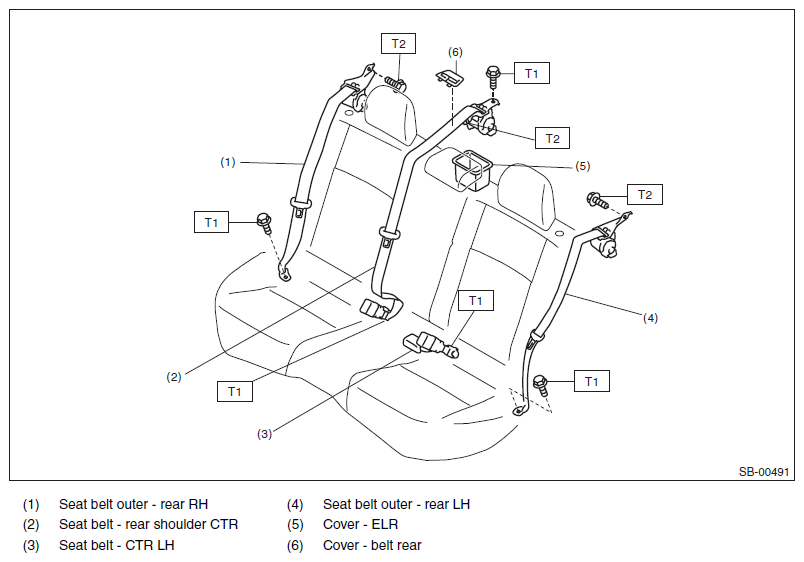

Fig 1: Rear Seat Belt Component With Torque Specification
Tightening torque: N.m (kgf-m, ft-lb)
T1: 30 (3.1, 22.1)
T2: 53 (5.4, 39.1)
