Rear Sub Frame: Removal

  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle, and then remove the rear wheels.
  3. Remove the rear exhaust pipe.
    • STI model: <Ref. to REMOVAL , Rear Exhaust Pipe.>
    • Except for STI model: <Ref. to REMOVAL , Rear Exhaust Pipe.>
  4. Remove the propeller shaft assembly. <Ref. to REMOVAL , Propeller Shaft.>
  5. Remove the clip and bolt on the harness clamp, and remove the rear ABS wheel speed sensor.
    CAUTION:
    • Be careful not to damage the sensor.
    • Do not apply excessive force to the sensor harness.

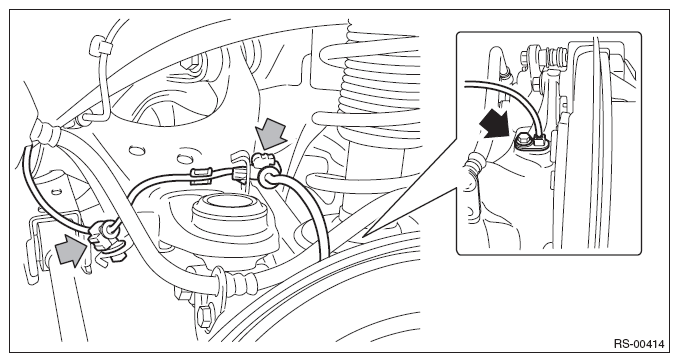

    Fig 1: Locating ABS Wheel Speed Sensor Bolt
    G08551334Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the disc brake assembly - rear. <Ref. to REMOVAL , Rear Disc Brake Assembly.>
  7. Remove the cable assembly - parking brake and the parking brake shoe. (Models without EyeSight) <Ref. to REMOVAL , Parking Brake Assembly (Rear Disc Brake).>
  8. Disconnect the electronic parking brake harness. (Models with EyeSight) <Ref. to REMOVAL , Parking Brake Cable.>

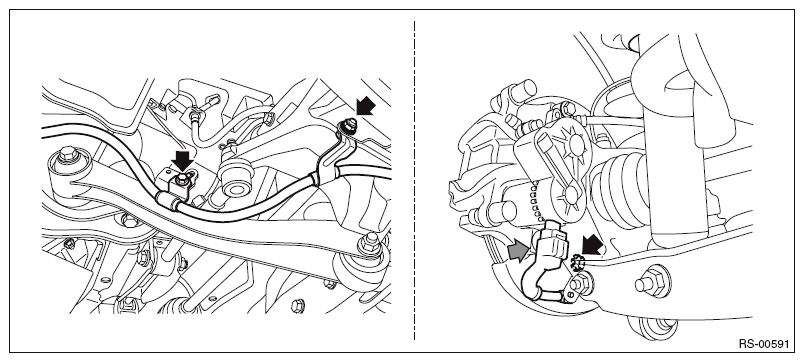

    Fig 2: Locating Electronic Parking Brake Harness Bolts
    G10271904Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the clamp of the sub rear harness.

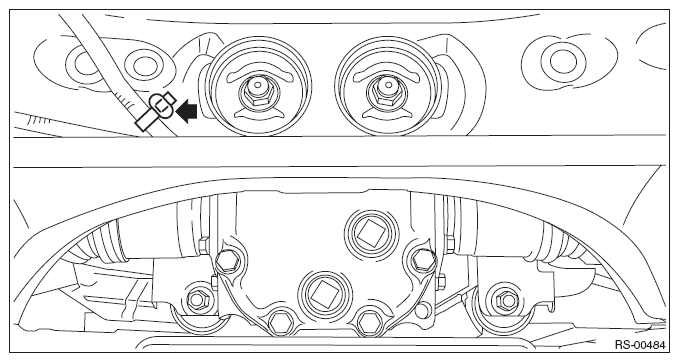

    Fig 3: Locating Sub Rear Harness Clamp
    G09488435Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the sensor assembly - headlight beam leveler. (Model with auto headlight beam leveler) <Ref. to REMOVAL , Rear Height Sensor.>
  11. Remove the fuel tank protector.
    • STI model: <Ref. to REMOVAL , Fuel Tank Protector.>
    • Except for STI model: <Ref. to REMOVAL , Fuel Tank Protector.>
  12. Remove the rear sub frame assembly.
    1. Remove the bolts and nuts from the lower side of rear shock absorber assembly.

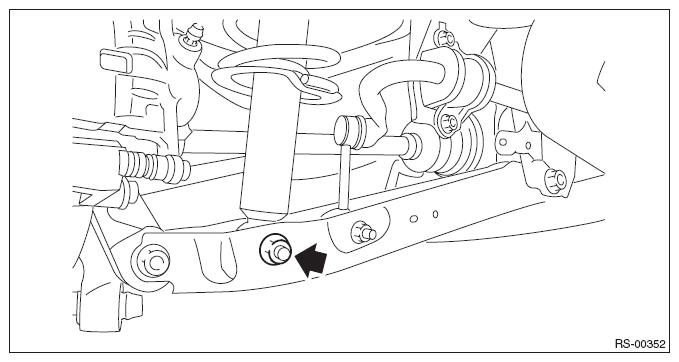

      Fig 4: Locating Rear Shock Absorber Assembly Bolt (Lower Side)
      G07914020Courtesy of SUBARU OF AMERICA, INC.
    2. Support the rear sub frame assembly using a transmission jack.
      CAUTION: The rear sub frame assembly is heavy. Make sure that it is horizontally-supported.
    3. Remove the bolt, and remove the left and right sub frame supports and the rear sub frame support.
    4. Remove the rear sub frame assembly.
      CAUTION: While checking there is no dragging of harness and wire, lower it slowly with a transmission jack.
    Fig 5: Supporting Rear Sub Frame Assembly Using Transmission Jack
    G10269475Courtesy of SUBARU OF AMERICA, INC.
  13. As necessary, remove each part from the rear sub frame assembly.
