Rear Shock Absorber

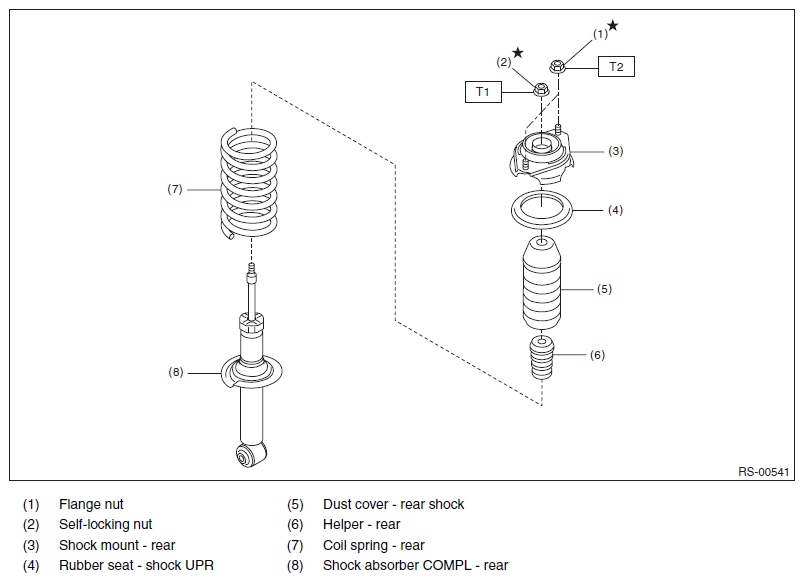

Fig 1: Exploded View Of Rear Shock Absorber With Torque Specification

G11579005

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 30 (3.1, 22.1)
