Front Camber

  1. Adjust the camber angle to the following value.
    Model Tire size Camber (difference between RH and LH 35' or less)
    WRX model 235/45R17 -0°45'±0°30'
    245/40R18
    STI model 245/40R18
  2. Loosen the two flange nuts while holding the strut bolts.
  3. Turn the camber adjusting bolt so that the camber is set at specification.
    NOTE: Moving the adjusting bolt by one scale changes the camber by approximately 0°15'.

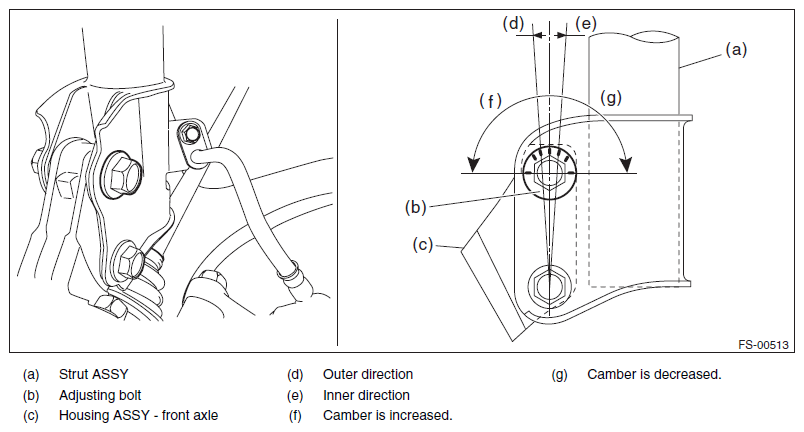

    Fig 1: Turning Camber Adjusting Bolt
    G11578946Courtesy of SUBARU OF AMERICA, INC.
    To increase camber.
    Rotate the left side counterclockwise. Rotate the right side clockwise.
    G06654859
    G06654860
    To decrease camber.
    Rotate the left side clockwise. Rotate the right side counterclockwise.
    G06654860
    G06654859
  4. Tighten two new flange nuts.

    Tightening torque:

    155 N.m (15.8 kgf-m, 114.3 ft-lb)

    NOTE: While holding the adjusting bolt side, tighten the nut side.
