Rear Alignment (Inspection Value)
- WRX model

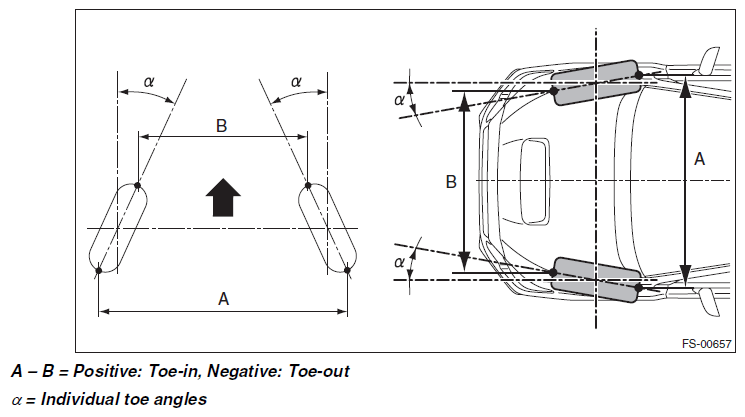

Tire size 235/45R17 245/40R18 Wheel arch height (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) mm (in) 367 (14.45) 361 (14.21) Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less) -1°30' -1°40' Toe-in mm (in) IN3±3 (IN0.12±0.12) Toe angle (sum of both wheels): IN0°16'±16' Thrust angle (tolerance: 0°00'±30') 0°00' - STI model
Tire size 245/40R18 Wheel arch height (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) mm (in) 362 (14.25) Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less) -1°40' Toe-in mm (in) IN3±3 (IN0.12±0.12) Toe angle (sum of both wheels): IN0°16'±16' Thrust angle (tolerance: 0°00'±30') 0°00'
NOTE:
- Adjust with the value less than the inspection value, taking aging variation into consideration.
- Front toe-in, rear toe-in and front camber can be adjusted. Adjust if the value of toe-in or camber exceeds the tolerance range of the specification chart.
- Other items except for front toe-in, rear toe-in and front camber that are described in the specification chart cannot be adjusted.
- If other items exceed the tolerance range of the specification chart, check the suspension parts and connections for deformation. If defective, replace with new parts.
