Front Crossmember Support Plate: Removal

1. Lift up the vehicle.
2. Remove the under cover - front. <Ref. to REMOVAL , Front Under Cover.>
3. Remove the bolt, and remove the front crossmember support.
   • Electric power steering model

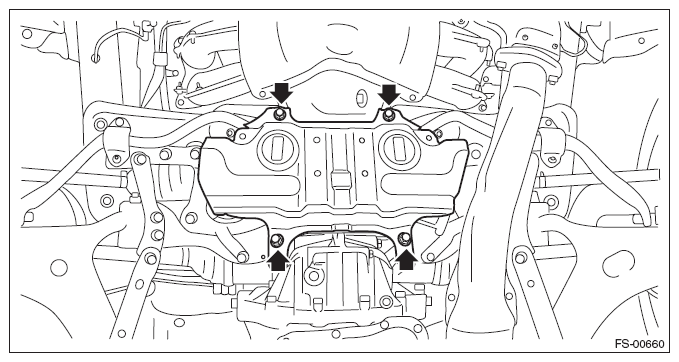

     Fig 1: Locating Front Crossmember Support Bolts (Electric Power Steering Model)

     Courtesy of SUBARU OF AMERICA, INC.
   • Hydraulic power steering model
   Fig 2: Locating Front Crossmember Support Bolts (Hydraulic Power Steering Model)

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the bolt, and remove the support plate - front crossmember (a).

Fig 3: Locating Front Crossmember Support Plate Bolts

Courtesy of SUBARU OF AMERICA, INC.
