Power Steering Control Module: Removal

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  2. Remove the power steering control module.
    1. Disconnect the connector of the power steering control module.
    2. Remove the nuts, and remove the power steering control module.
    3. Remove the bracket - control module.

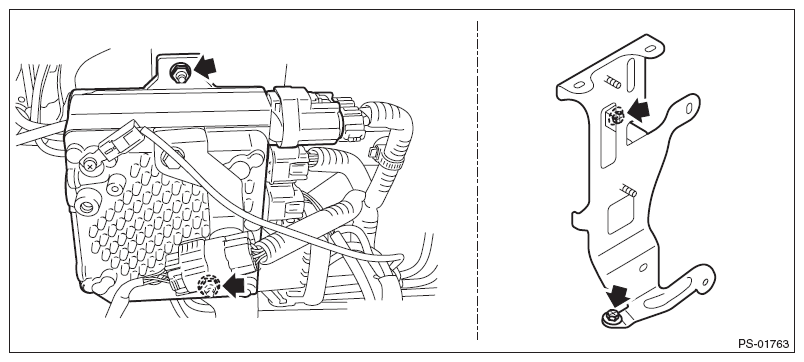

    Fig 1: Locating Control Module Brackets Bolts
    G10270226Courtesy of SUBARU OF AMERICA, INC.
